Question 5 (20 Marks) A machine component shown in Figure Q5 is made of steel with yield stress of 325 MPa. Knowing that

Post by answerhappygod »

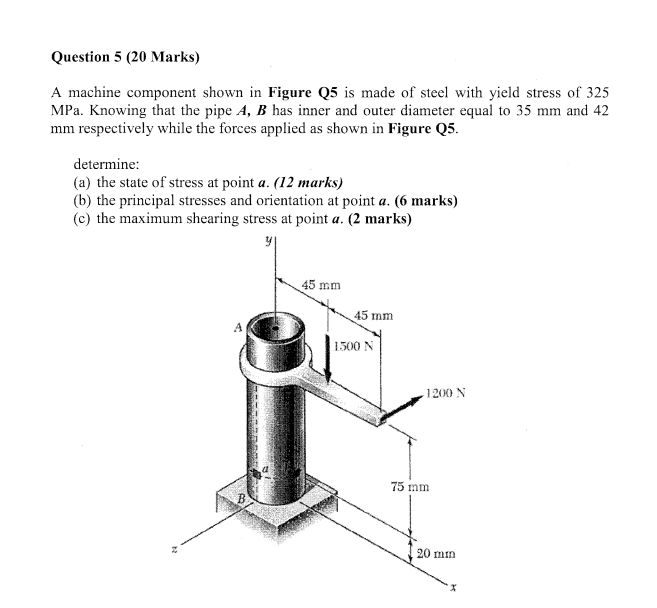

Question 5 20 Marks A Machine Component Shown In Figure Q5 Is Made Of Steel With Yield Stress Of 325 Mpa Knowing That 1
Question 5 20 Marks A Machine Component Shown In Figure Q5 Is Made Of Steel With Yield Stress Of 325 Mpa Knowing That 1 (76.45 KiB) Viewed 44 times
Question 5 (20 Marks) A machine component shown in Figure Q5 is made of steel with yield stress of 325 MPa. Knowing that the pipe A, B has inner and outer diameter equal to 35 mm and 42 mm respectively while the forces applied as shown in Figure Q5. determine: (a) the state of stress at point a. (12 marks) (b) the principal stresses and orientation at point a. (6 marks) (c) the maximum shearing stress at point a. (2 marks) A 45 mm 45 mm 1500 N 1200 N 75 mm 20 mm
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
