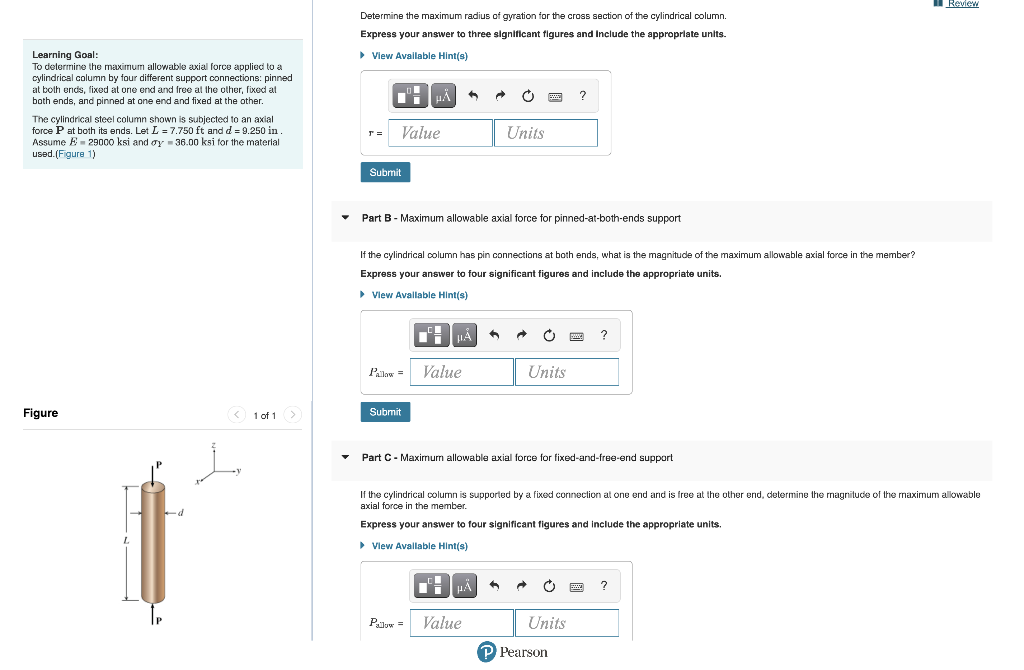

Learning Goal To Determine The Maximum Allowable Axial Force Applied To A Cylindrical Column By Four Different Support 1 (85.85 KiB) Viewed 62 times
Learning Goal: To determine the maximum allowable axial force applied to a cylindrical column by four different support connections: pinned at both ends, fixed at one end and free at the other, fixed at both ends, and pinned at one end and fixed at the other. The cylindrical steel column shown is subjected to an axial force P at both its ends. Let L = 7.750 ft and d = 9.250 in Assume - 29000 ksi and oy36.00 ksi for the material used.(Figure 1) Figure d 1 of 1 > Determine the maximum radius of gyration for the cross section of the cylindrical column. Express your answer to three significant figures and Include the appropriate units. ▸ View Available Hint(s) T= Value Submit μA Submit ^ Pallow= Value ▾ Part B - Maximum allowable axial force for pinned-at-both-ends support μA If the cylindrical column has pin connections at both ends, what is the magnitude of the maximum allowable axial force in the member? Express your answer to four significant figures and include the appropriate units. ▸ View Available Hint(s) Ć Units HÅ Pallow= Value Units ? ▾ Part C-Maximum allowable axial force for fixed-and-free-end support If the cylindrical column is supported by a fixed connection at one end and is free at the other end, determine the magnitude of the maximum allowable axial force in the member. Express your answer to four significant figures and include the appropriate units. ▸ View Available Hint(s) Units ? P Pearson Review
Learning Goal: To determine the maximum allowable axial force applied to a cylindrical column by four different support connections: pinned at both ends, fixed at one end and free at the other, fixed at both ends, and pinned at one end and fixed at the other. The cylindrical steel column shown is subjected to an axial force P at both its ends. Let L = 7.750 ft and d = 9.250 in Assume = 29000 ksi and oy36.00 ksi for the material used.(Figure 1) Figure d 1 of 1 > Pallow= Submit Pallow= ▾ Part D-Maximum allowable axial force for fixed-at-both-ends support Submit ■'-|µA| Value If the cylindrical column is fixed at both ends, determine the magnitude of the maximum allowable axial force the member. Express your answer to four significant figures and include the appropriate units. ▸ View Available Hint(s) ■μÅ A A Submit Value Provide Feedback Units Pallow= Value ▾ Part E - Maximum allowable axial force for pinned-and-fixed-end support Units ← If the cylindrical column shown is pinned at one end and fixed at the other, determine the magnitude of the maximum allowable axial force in the member. Express your answer to four significant figures and include the appropriate units. ▸ View Available Hint(s) ? Ò Units ? P Pearson Review ? Next >
