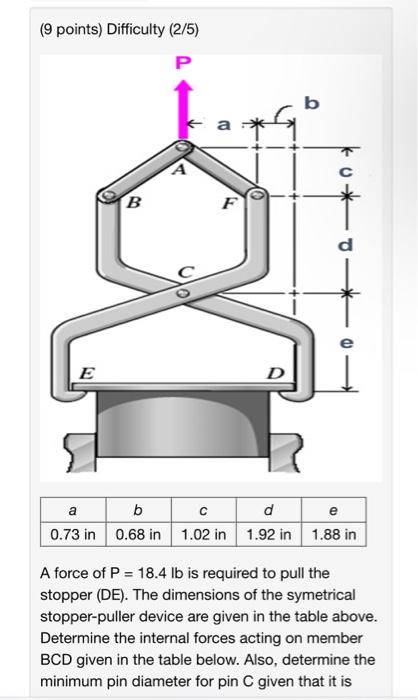

(9 points) Difficulty (2/5) P E B A a F b e a b с d e 0.73 in 0.68 in 1.02 in 1.92 in 1.88 in A force of P = 18.4 lb is required to pull the stopper (DE). The dimensions of the symetrical stopper-puller device are given in the table above. Determine the internal forces acting on member BCD given in the table below. Also, determine the minimum pin diameter for pin C given that it is

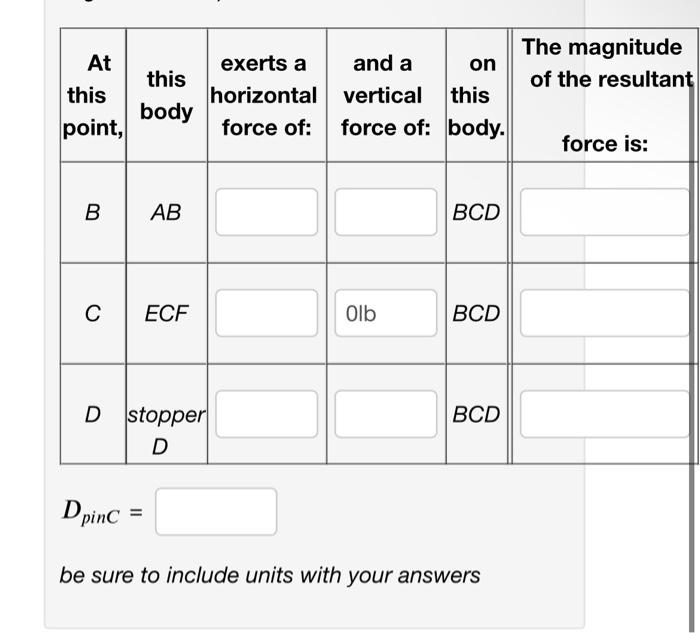

At this point, B C D Dpinc this body AB ECF stopper D exerts a horizontal force of: and a on vertical this force of: body. Olb BCD BCD BCD be sure to include units with your answers The magnitude of the resultant force is:
