QUESTION 19 The 150-lb crate is supported by cables AB, AC, and AD as shown. Which scalar equilibrium equation can be us

[answerhappygod]

Question 19 The 150 Lb Crate Is Supported By Cables Ab Ac And Ad As Shown Which Scalar Equilibrium Equation Can Be Us 1 (20.14 KiB) Viewed 20 times

Question 19 The 150 Lb Crate Is Supported By Cables Ab Ac And Ad As Shown Which Scalar Equilibrium Equation Can Be Us 2 (22.26 KiB) Viewed 20 times

Question 19 The 150 Lb Crate Is Supported By Cables Ab Ac And Ad As Shown Which Scalar Equilibrium Equation Can Be Us 3 (17.27 KiB) Viewed 20 times

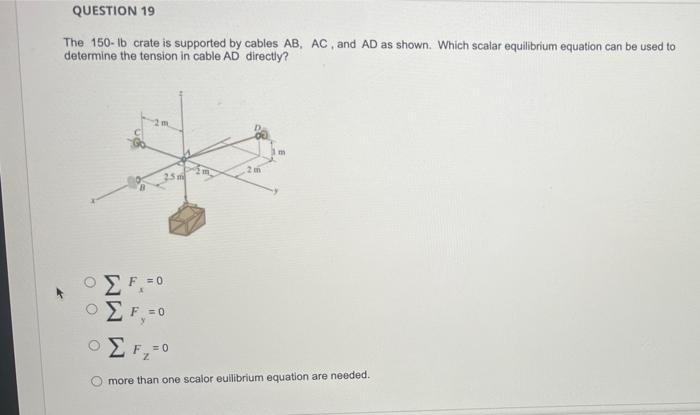

QUESTION 19 The 150-lb crate is supported by cables AB, AC, and AD as shown. Which scalar equilibrium equation can be used to determine the tension in cable AD directly? 2 m Σ F = 0 ΣF =o 2m Ο Σ F = 0 Z more than one scalor euilibrium equation are needed.

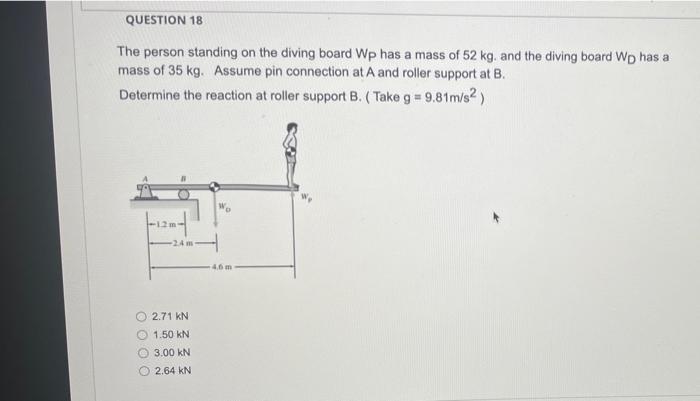

QUESTION 18 The person standing on the diving board Wp has a mass of 52 kg. and the diving board WD has a mass of 35 kg. Assume pin connection at A and roller support at B. Determine the reaction at roller support B. (Take g = 9.81m/s2) -24 m 2.71 KN 1.50 KN 3.00 KN 2.64 KN 4.6 m

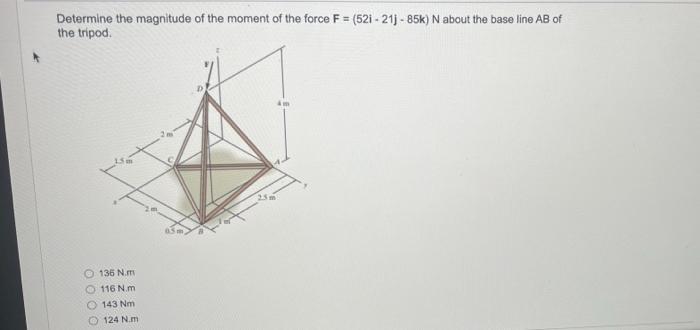

Determine the magnitude of the moment of the force F = (52i-21j - 85k) N about the base line AB of the tripod. 1.5m 136 N.m 116 N.m 143 Nm 124 Nm
