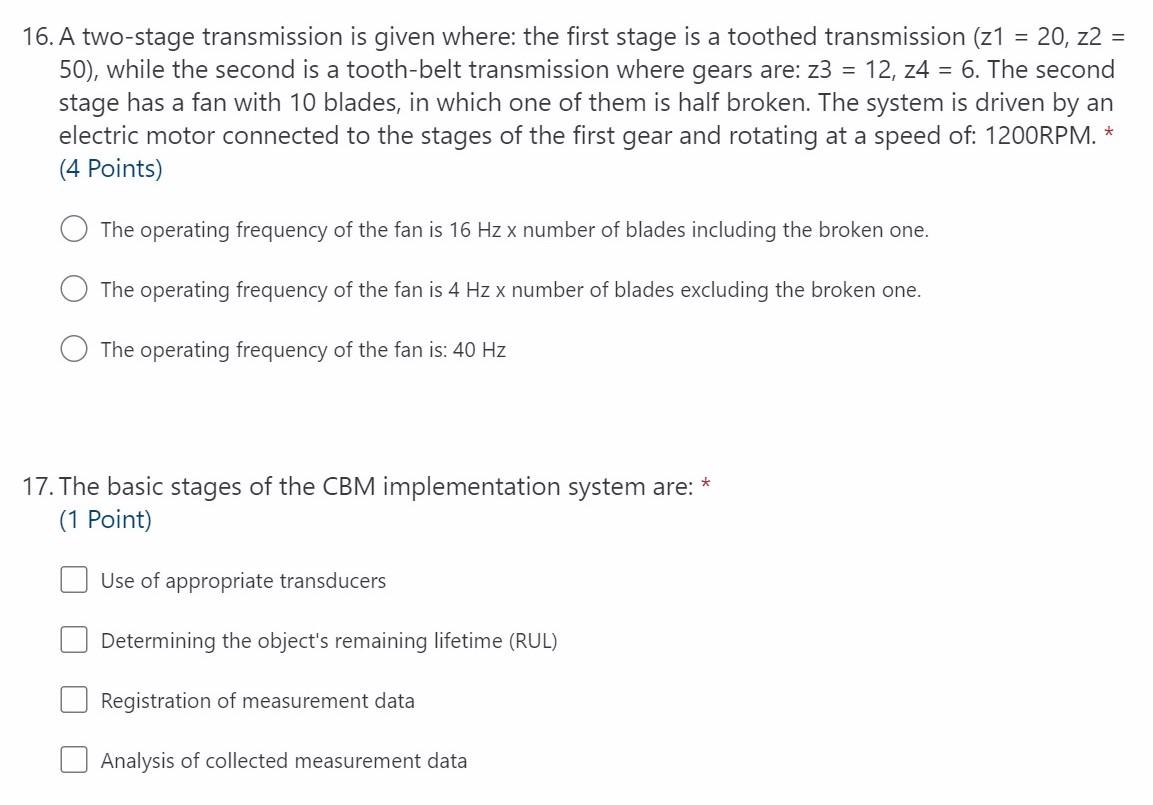

16 A Two Stage Transmission Is Given Where The First Stage Is A Toothed Transmission Z1 20 Z2 50 While The Sec 1 (80.44 KiB) Viewed 27 times

16. A two-stage transmission is given where: the first stage is a toothed transmission (z1 = 20, z2 = 50), while the second is a tooth-belt transmission where gears are: z3 = 12, z4 = 6. The second stage has a fan with 10 blades, in which one of them is half broken. The system is driven by an electric motor connected to the stages of the first gear and rotating at a speed of: 1200RPM. * (4 Points) The operating frequency of the fan is 16 Hz x number of blades including the broken one. The operating frequency of the fan is 4 Hz x number of blades excluding the broken one. The operating frequency of the fan is: 40 Hz * 17. The basic stages of the CBM implementation system are: (1 Point) Use of appropriate transducers Determining the object's remaining lifetime (RUL) Registration of measurement data Analysis of collected measurement data
