Q.3) For the given state of stress shown below determine the principal stresses, the in-plane maximum shear stress, and

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

Q.3) For the given state of stress shown below determine the principal stresses, the in-plane maximum shear stress, and

Post by answerhappygod »

Q 3 For The Given State Of Stress Shown Below Determine The Principal Stresses The In Plane Maximum Shear Stress And 1
Q 3 For The Given State Of Stress Shown Below Determine The Principal Stresses The In Plane Maximum Shear Stress And 1 (32.61 KiB) Viewed 27 times

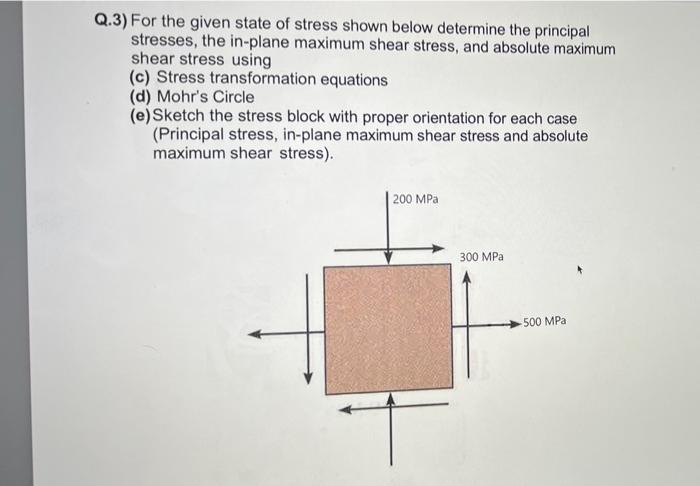

Q.3) For the given state of stress shown below determine the principal stresses, the in-plane maximum shear stress, and absolute maximum shear stress using (c) Stress transformation equations (d) Mohr's Circle (e) Sketch the stress block with proper orientation for each case (Principal stress, in-plane maximum shear stress and absolute maximum shear stress). 200 MPa 300 MPa 500 MPa
