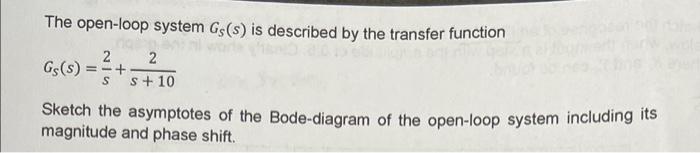

The open-loop system Gs(s) is described by the transfer function 2 Gs(s): ==+ 2 S s + 10 Sketch the asymptotes of the Bode-diagram of the open-loop system including its magnitude and phase shift.

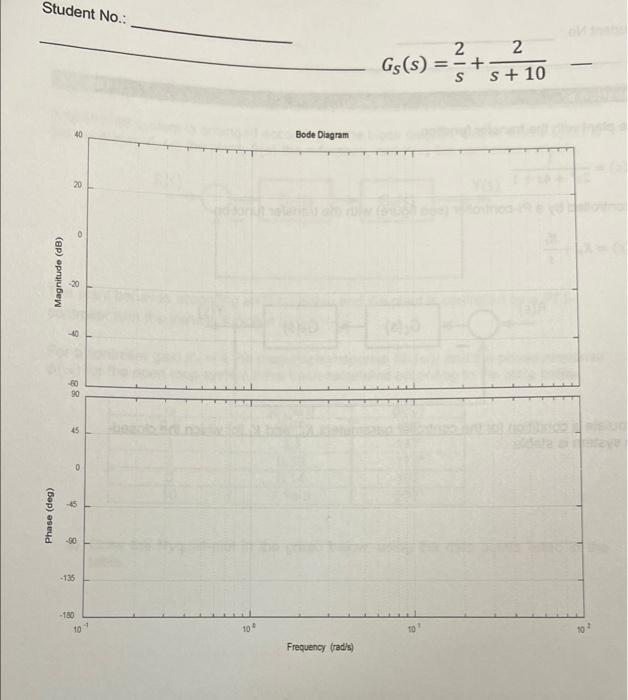

Student No.: Magnitude (dB) Phase (deg) 20 8 9 o -60 90 45 120 8 -135 -180 0 10 Bode Diagram Frequency (radis) 2 2 Gs(s) = ² + +10 S s - 10
