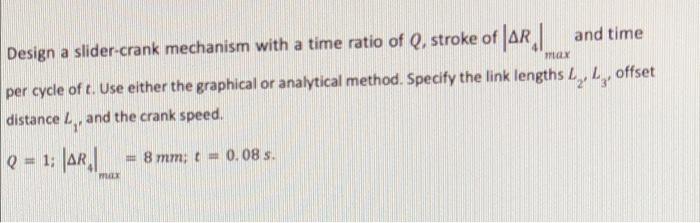

Design a slider-crank mechanism with a time ratio of Q, stroke of AR and time per cycle of t. Use either the graphical or analytical method. Specify the link lengths L₂, L₂, offset distance L., and the crank speed. Q = 1: |AR| max 8 mm; t 0.08 s. max
