Project-3: Determine the position, veolicty and acclerations of points B, C, D. a B 0₁ 9, D 0₂ 19. O,B=50mm,0,0,=150mm,

Post by answerhappygod »

Project 3 Determine The Position Veolicty And Acclerations Of Points B C D A B 0 9 D 0 19 O B 50mm 0 0 150mm 1
Project 3 Determine The Position Veolicty And Acclerations Of Points B C D A B 0 9 D 0 19 O B 50mm 0 0 150mm 1 (20.42 KiB) Viewed 16 times
Project 3 Determine The Position Veolicty And Acclerations Of Points B C D A B 0 9 D 0 19 O B 50mm 0 0 150mm 2
Project 3 Determine The Position Veolicty And Acclerations Of Points B C D A B 0 9 D 0 19 O B 50mm 0 0 150mm 2 (20.42 KiB) Viewed 16 times

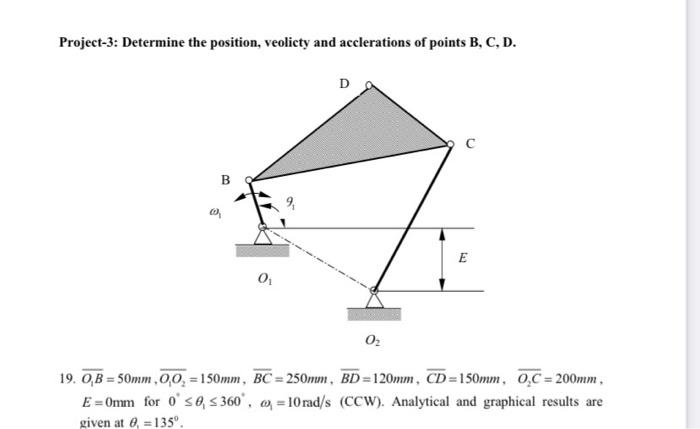

Project-3: Determine the position, veolicty and acclerations of points B, C, D. a B 0₁ 9, D 0₂ 19. O,B=50mm,0,0,=150mm, BC=250mm, BD=120mm, CD=150mm, 0,C=200mm, E=0mm for 0 ≤0, ≤360, -10 rad/s (CCW). Analytical and graphical results are given at 8, 135º. =
