50 KN 30 KN U B Al 70 KN D H I G E 50 KN 3m 3m 3m The truss above is supported by a roller at A and a pin at F. For this

[answerhappygod]

50 Kn 30 Kn U B Al 70 Kn D H I G E 50 Kn 3m 3m 3m The Truss Above Is Supported By A Roller At A And A Pin At F For This 1 (33.36 KiB) Viewed 34 times

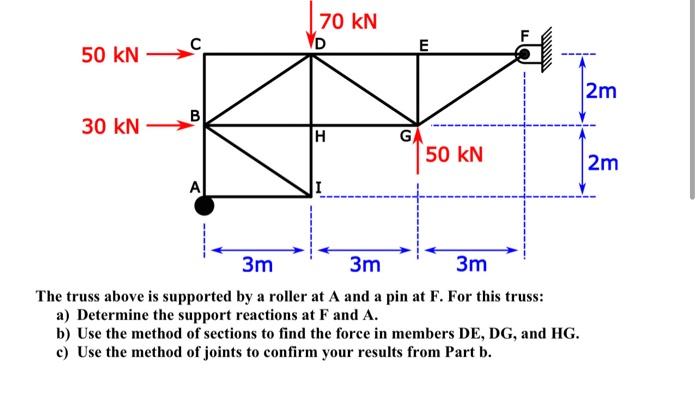

50 KN 30 KN U B Al 70 KN D H I G E 50 KN 3m 3m 3m The truss above is supported by a roller at A and a pin at F. For this truss: a) Determine the support reactions at F and A. b) Use the method of sections to find the force in members DE, DG, and HG. c) Use the method of joints to confirm your results from Part b. 2m 2m
