Problem 3: For the drag link slider crank mechanism, use vector loop equation to find the velocity of slider at the posi

[answerhappygod]

Problem 3 For The Drag Link Slider Crank Mechanism Use Vector Loop Equation To Find The Velocity Of Slider At The Posi 1 (164.21 KiB) Viewed 35 times

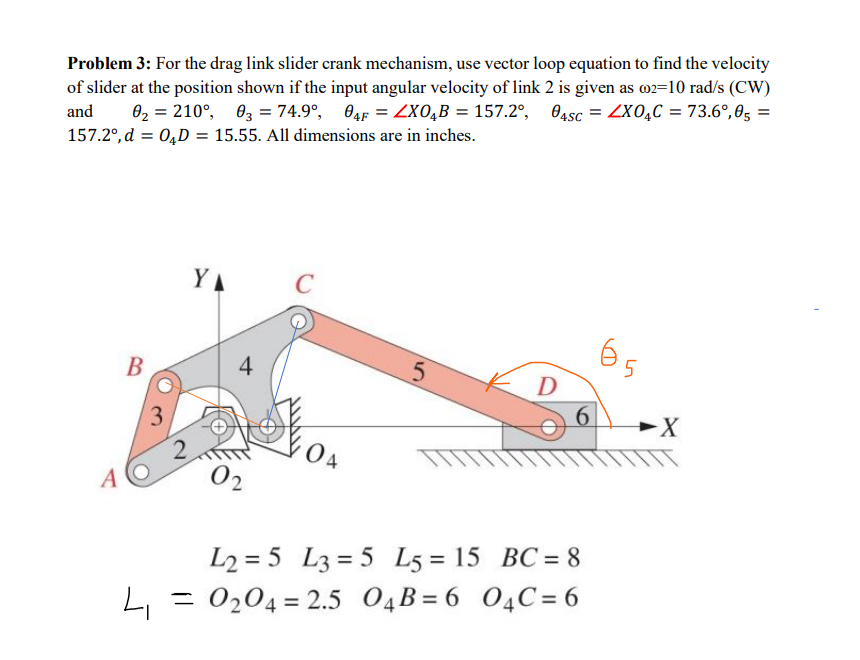

Problem 3: For the drag link slider crank mechanism, use vector loop equation to find the velocity of slider at the position shown if the input angular velocity of link 2 is given as 002=10 rad/s (CW) and 0₂ = 210°, 03 = 74.9°, 04F = LXO₂B = 157.2°, 04sc = ZXO4C = 73.6°,05 = 157.2°, d = 0₂D = 15.55. All dimensions are in inches. A B 3 4₁ 2 YA 4 C 5 D 6 L2=5 L3=5 L5 = 15 BC= 8 = 0₂04=2.5 04B=6 04C = 6 65 -X TIT
