(15 points) A dynamic system has the transfer function given as G(s)=- 50(s+5)(s+20) s(s+10) (s² +70s +2500) (a) (10 poi

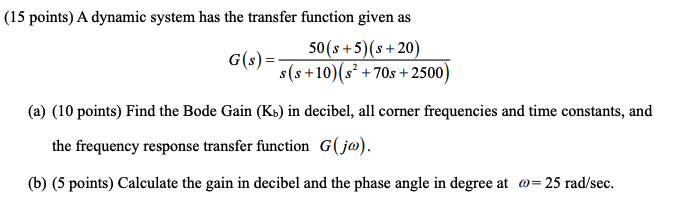

(15 points) A dynamic system has the transfer function given as G(s)=- 50(s+5)(s+20) s(s+10) (s² +70s +2500) (a) (10 points) Find the Bode Gain (Kb) in decibel, all corner frequencies and time constants, and the frequency response transfer function G(jo). (b) (5 points) Calculate the gain in decibel and the phase angle in degree at = 25 rad/sec.
