1. The A-frame is being hoisted into an upright position by the vertical force of F = 80lb. Determine the moment of this

Post by answerhappygod »

1 The A Frame Is Being Hoisted Into An Upright Position By The Vertical Force Of F 80lb Determine The Moment Of This 1
1 The A Frame Is Being Hoisted Into An Upright Position By The Vertical Force Of F 80lb Determine The Moment Of This 1 (63.06 KiB) Viewed 28 times

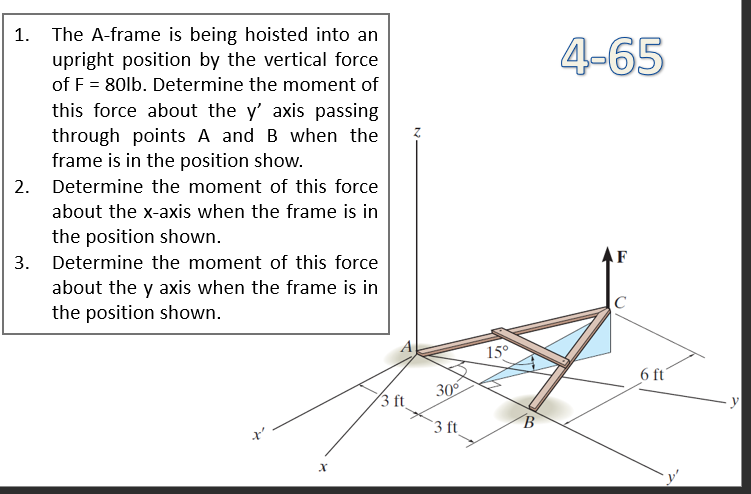

1. The A-frame is being hoisted into an upright position by the vertical force of F = 80lb. Determine the moment of this force about the y' axis passing through points A and B when the frame is in the position show. 2. Determine the moment of this force about the x-axis when the frame is in the position shown. 3. Determine the moment of this force about the y axis when the frame is in the position shown. X 3 ft 30° 3 ft 15° B 4-65 F C 6 ft
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
