(10 points) Difficulty (3/5) A B Ax = 0 a b Ф 0 1.3 ft 1.8 ft 27° 63° W Ay = Ey = TBD = Cx = a D W 120 lb Determine the
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
(10 points) Difficulty (3/5) A B Ax = 0 a b Ф 0 1.3 ft 1.8 ft 27° 63° W Ay = Ey = TBD = Cx = a D W 120 lb Determine the

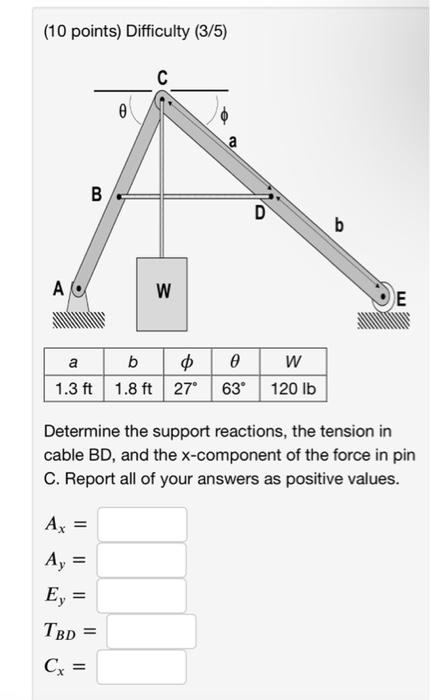

(10 points) Difficulty (3/5) A B Ax = 0 a b Ф 0 1.3 ft 1.8 ft 27° 63° W Ay = Ey = TBD = Cx = a D W 120 lb Determine the support reactions, the tension in cable BD, and the x-component of the force in pin C. Report all of your answers as positive values. b E
