As shown in the figure below, a U-tube manometer is connected to a closed tank. The pressure at point A is 2.00 psi. The

Post by answerhappygod »

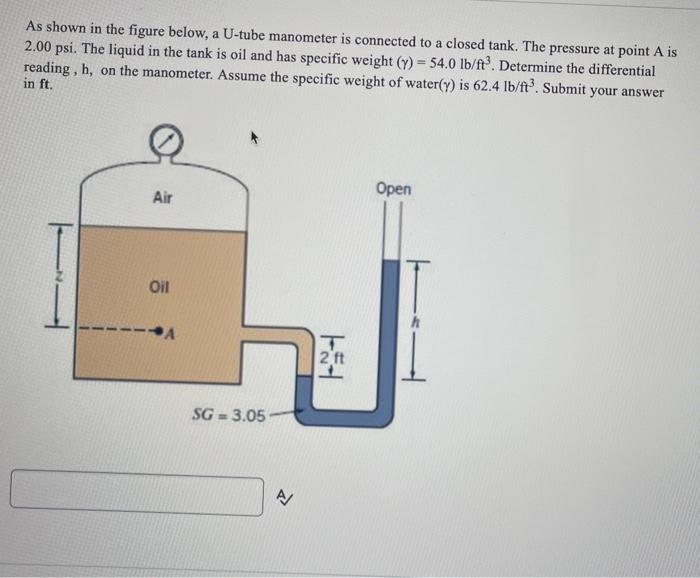

As Shown In The Figure Below A U Tube Manometer Is Connected To A Closed Tank The Pressure At Point A Is 2 00 Psi The 1
As Shown In The Figure Below A U Tube Manometer Is Connected To A Closed Tank The Pressure At Point A Is 2 00 Psi The 1 (41.15 KiB) Viewed 36 times
As shown in the figure below, a U-tube manometer is connected to a closed tank. The pressure at point A is 2.00 psi. The liquid in the tank is oil and has specific weight (y) = 54.0 lb/ft³. Determine the differential reading, h, on the manometer. Assume the specific weight of water(y) is 62.4 lb/ft³. Submit your answer in ft. Air Oil SG=3.05 A/ T 2 ft Open
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
