1.6 m Using the method of sections, determine the forces in members CF, CD and GF (Fig. 3). A I 16 kN 12 kN B H 2.0 m C.

[answerhappygod]

1 6 M Using The Method Of Sections Determine The Forces In Members Cf Cd And Gf Fig 3 A I 16 Kn 12 Kn B H 2 0 M C 1 (55.37 KiB) Viewed 38 times

1 6 M Using The Method Of Sections Determine The Forces In Members Cf Cd And Gf Fig 3 A I 16 Kn 12 Kn B H 2 0 M C 2 (64.1 KiB) Viewed 38 times

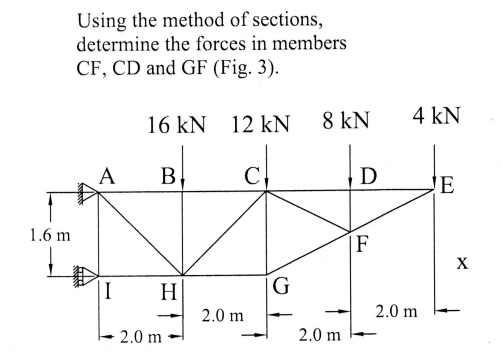

1.6 m Using the method of sections, determine the forces in members CF, CD and GF (Fig. 3). A I 16 kN 12 kN B H 2.0 m C. 2.0 m G 8 kN] 2.0 m D F 4 kN 2.0 m JE X

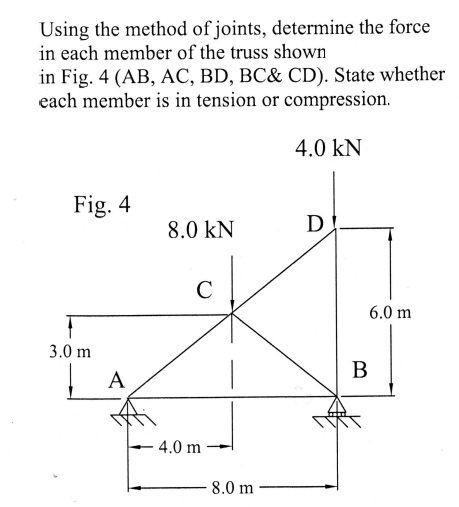

Using the method of joints, determine the force in each member of the truss shown in Fig. 4 (AB, AC, BD, BC& CD). State whether each member is in tension or compression. 4.0 KN Fig. 4 3.0 m A 8.0 KN C 4.0 m 8.0 m D 6.0 m B
