A machine element is statically loaded. For the stress state σ in a critical section (shown below). Determine the factor

Post by answerhappygod »

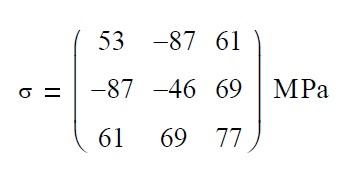

A machine element is statically loaded. For the stress state σ in a critical section (shown below).
1
1 (6.61 KiB) Viewed 19 times
Determine the factor of safety for Ductile Materials use Tresca and Von Mises theories and for Brittle Materials use Modified Mohr theory.
о- 53 -87 61 -87 -46 69 61 69 77 MPa
