1. A rigid bar AB of a length L = 1.7 m is hinged to a support at A and supported by two vertical wires attached at poin

[answerhappygod]

1 A Rigid Bar Ab Of A Length L 1 7 M Is Hinged To A Support At A And Supported By Two Vertical Wires Attached At Poin 1 (47.33 KiB) Viewed 29 times

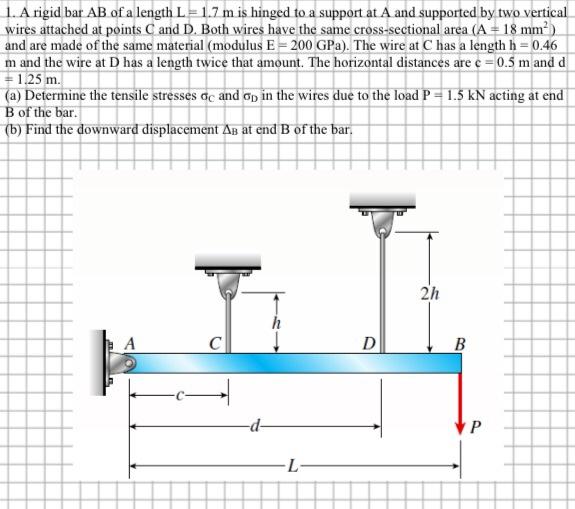

1. A rigid bar AB of a length L = 1.7 m is hinged to a support at A and supported by two vertical wires attached at points C and D. Both wires have the same cross-sectional area (A = 18 mm²) and are made of the same material (modulus E-200 GPa). The wire at C has a length h = 0.46 m and the wire at D has a length twice that amount. The horizontal distances are c = 0.5 m and d +1.25 m. (a) Determine the tensile stresses ac and op in the wires due to the load P = 1.5 kN acting at end B of the bar. (b) Find the downward displacement AB at end B of the bar. A C L- D 2h B P
