The T-beam shown in the figure has cross-sectional dimensions: b = 200 mm, t = 17 mm, h = 300 mm, and h₁ The beam is sub

[answerhappygod]

The T Beam Shown In The Figure Has Cross Sectional Dimensions B 200 Mm T 17 Mm H 300 Mm And H The Beam Is Sub 1 (86.65 KiB) Viewed 25 times

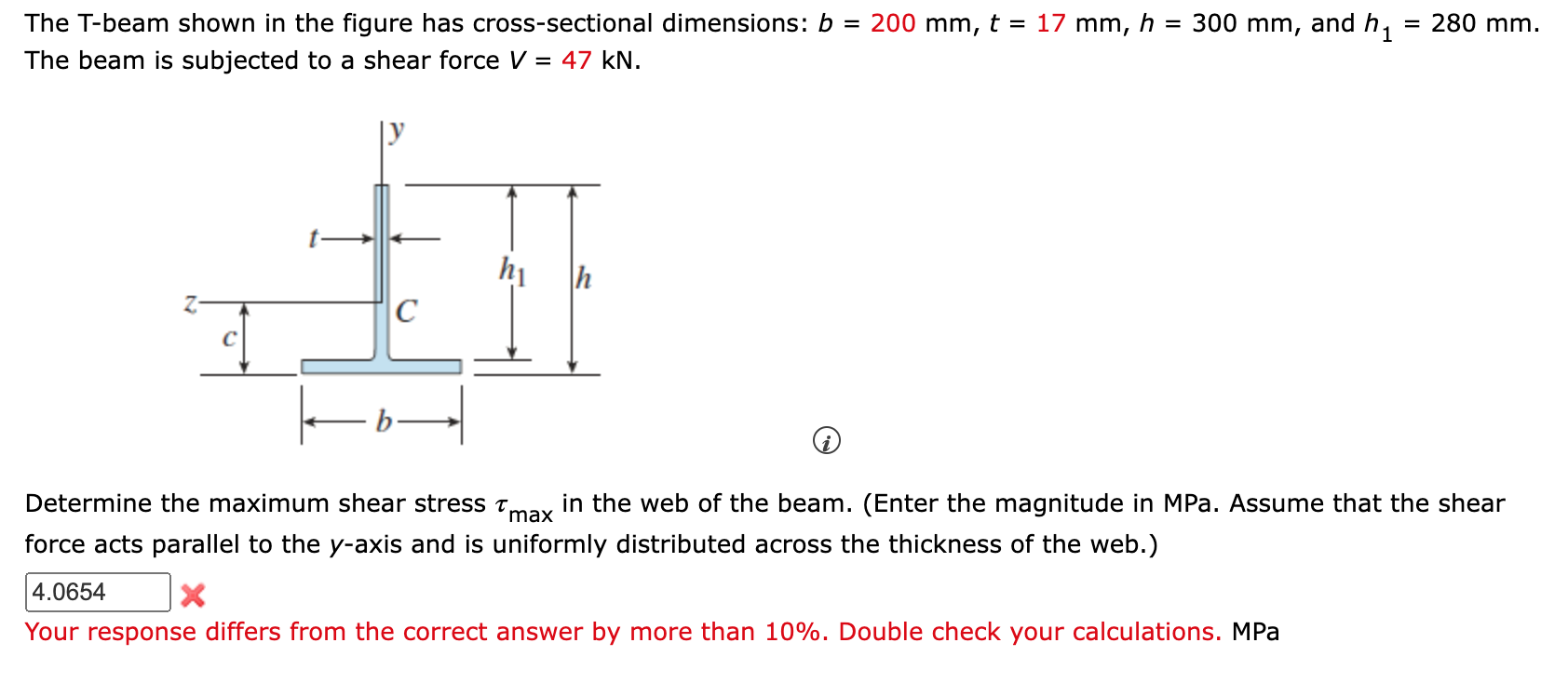

The T-beam shown in the figure has cross-sectional dimensions: b = 200 mm, t = 17 mm, h = 300 mm, and h₁ The beam is subjected to a shear force V = 47 kN. с h₁ = 280 mm. Determine the maximum shear stress max in the web of the beam. (Enter the magnitude in MPa. Assume that the shear force acts parallel to the y-axis and is uniformly distributed across the thickness of the web.) X 4.0654 Your response differs from the correct answer by more than 10%. Double check your calculations. MPa
