The material for the 48-mm-long specimen has the stress-strain diagram shown. σ (MPa) 500 450 0.00225 0.03 20 mm P € (mm

Post by answerhappygod »

1
1 (52.34 KiB) Viewed 26 times
2
2 (74.15 KiB) Viewed 26 times

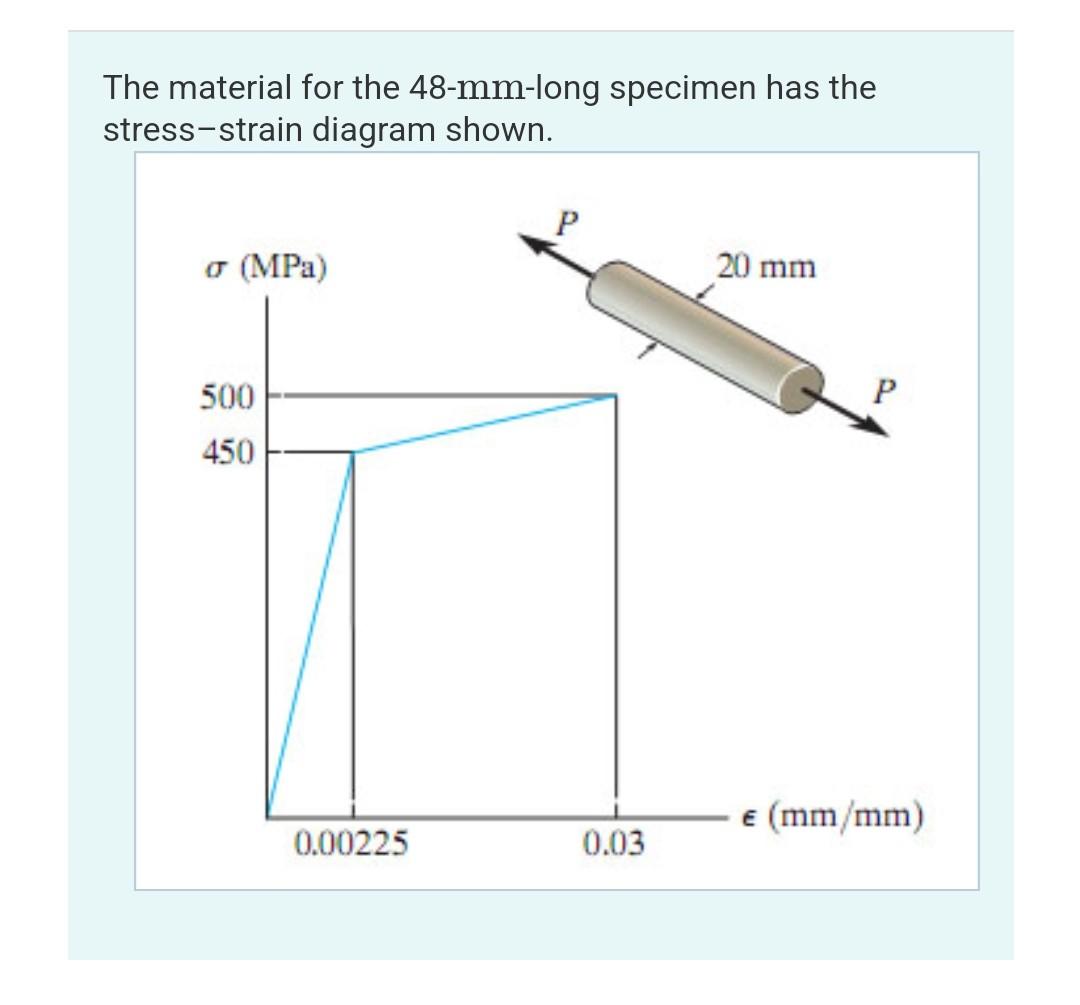

The material for the 48-mm-long specimen has the stress-strain diagram shown. σ (MPa) 500 450 0.00225 0.03 20 mm P € (mm/mm)

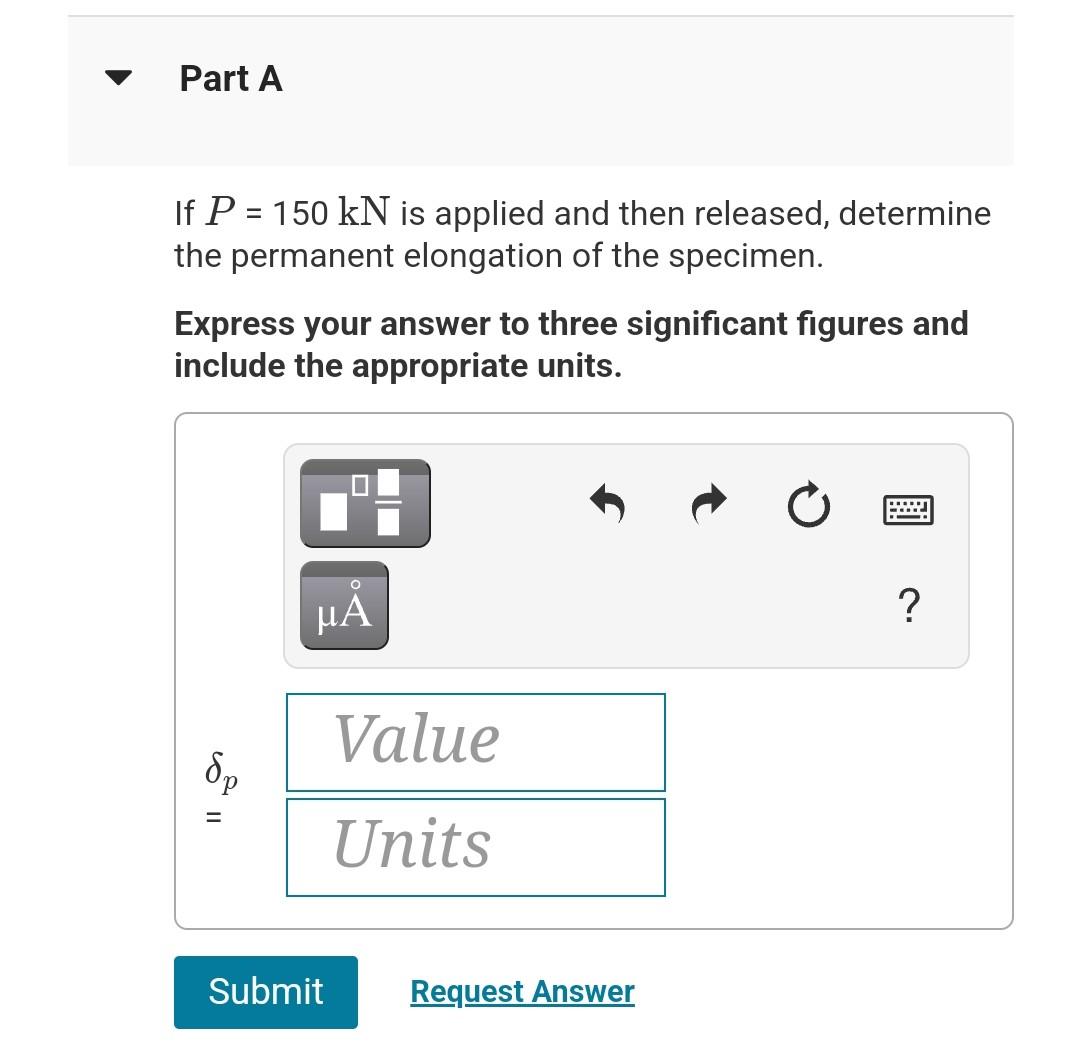

Part A If P = 150 kN is applied and then released, determine the permanent elongation of the specimen. Express your answer to three significant figures and include the appropriate units. 8p = O μA Submit Value Units Request Answer ?
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
