A rigid pipe is supported by the wire BD and a pin at A. The wire has a diameter 0.25 in and a modulus of elasticity 29,

Post by answerhappygod »

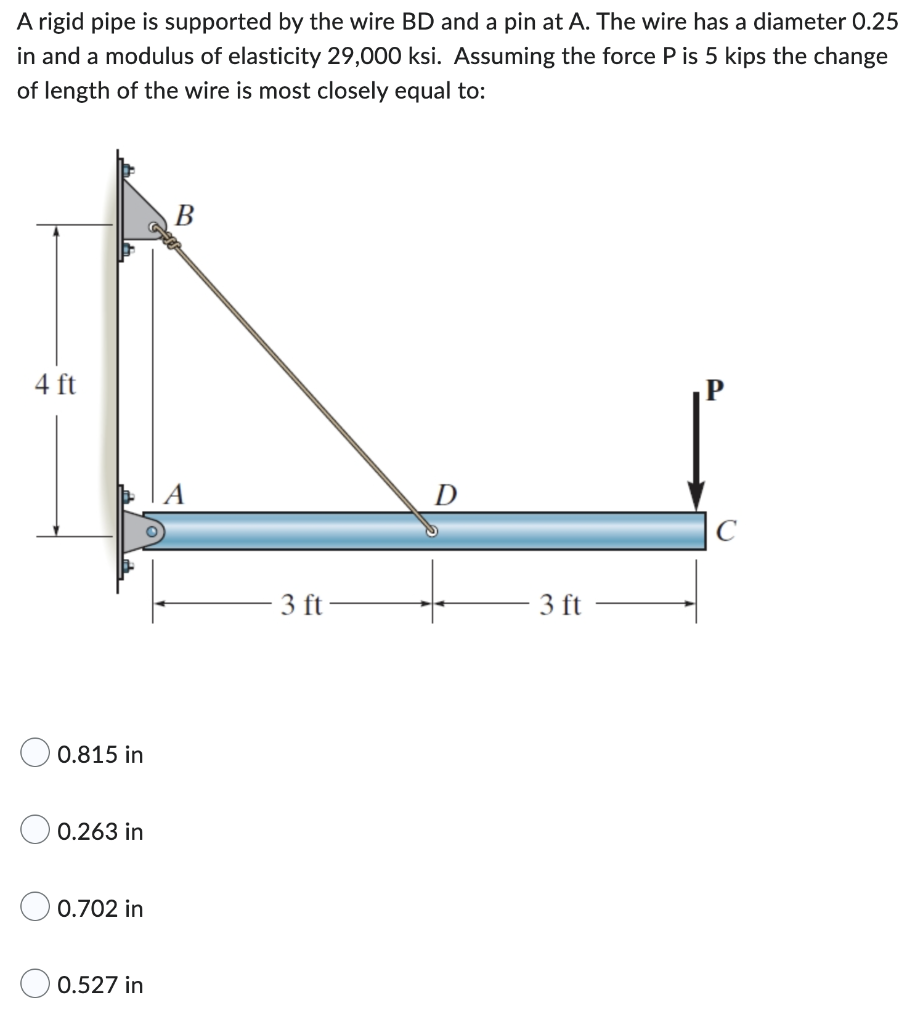

A Rigid Pipe Is Supported By The Wire Bd And A Pin At A The Wire Has A Diameter 0 25 In And A Modulus Of Elasticity 29 1
A Rigid Pipe Is Supported By The Wire Bd And A Pin At A The Wire Has A Diameter 0 25 In And A Modulus Of Elasticity 29 1 (109.1 KiB) Viewed 27 times
A rigid pipe is supported by the wire BD and a pin at A. The wire has a diameter 0.25 in and a modulus of elasticity 29,000 ksi. Assuming the force P is 5 kips the change of length of the wire is most closely equal to: 4 ft 0.815 in 0.263 in 0.702 in 0.527 in B 3 ft D 3 ft C
