Problem 4 (30 points) A beam is supported at points B and D as shown. Loads of 30 kN and 60 kN are applied at points A a

Post by answerhappygod »

Problem 4 30 Points A Beam Is Supported At Points B And D As Shown Loads Of 30 Kn And 60 Kn Are Applied At Points A A 1
Problem 4 30 Points A Beam Is Supported At Points B And D As Shown Loads Of 30 Kn And 60 Kn Are Applied At Points A A 1 (31.39 KiB) Viewed 31 times
solve in 25 mins i will thumb up

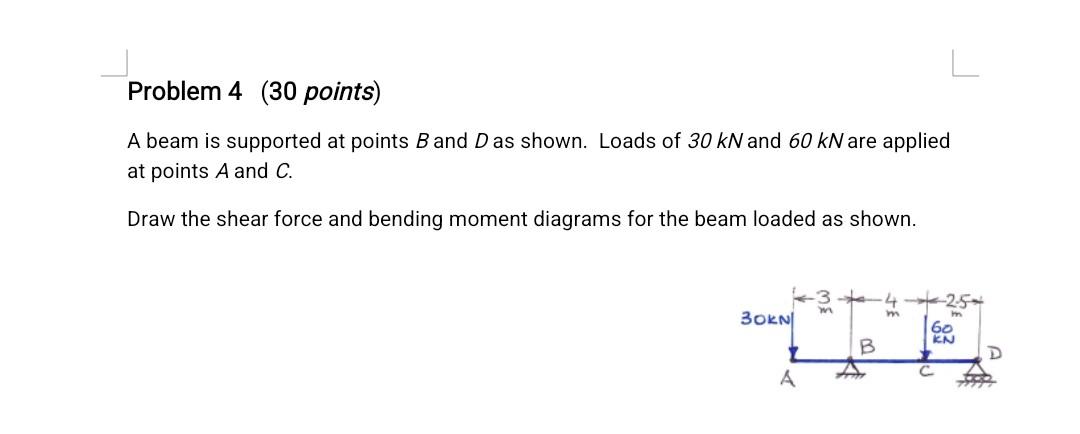

Problem 4 (30 points) A beam is supported at points B and D as shown. Loads of 30 kN and 60 kN are applied at points A and C. Draw the shear force and bending moment diagrams for the beam loaded as shown. 30KN +3+ m A B 4 m 60 KN
