3.57 At a time when rotation is prevented at the lower end of each shaft, a 50-N-m torque is applied to end A of shaft A

[answerhappygod]

3 57 At A Time When Rotation Is Prevented At The Lower End Of Each Shaft A 50 N M Torque Is Applied To End A Of Shaft A 1 (32.91 KiB) Viewed 35 times

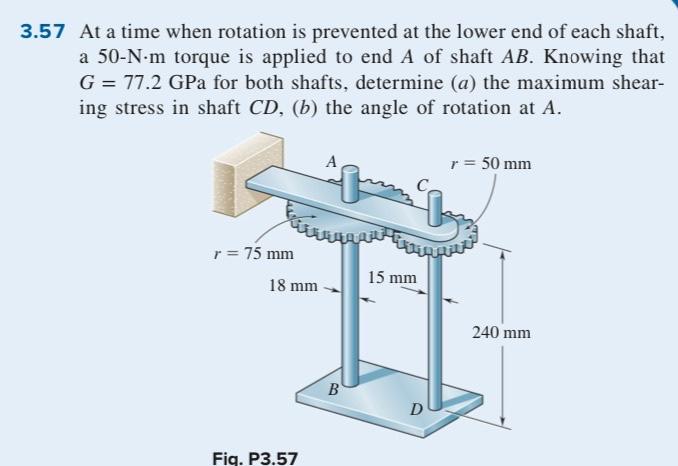

3.57 At a time when rotation is prevented at the lower end of each shaft, a 50-N-m torque is applied to end A of shaft AB. Knowing that G = 77.2 GPa for both shafts, determine (a) the maximum shear- ing stress in shaft CD, (b) the angle of rotation at A. r = 75 mm 18 mm Fig. P3.57 B aigus 15 mm r = 50 mm D 240 mm
