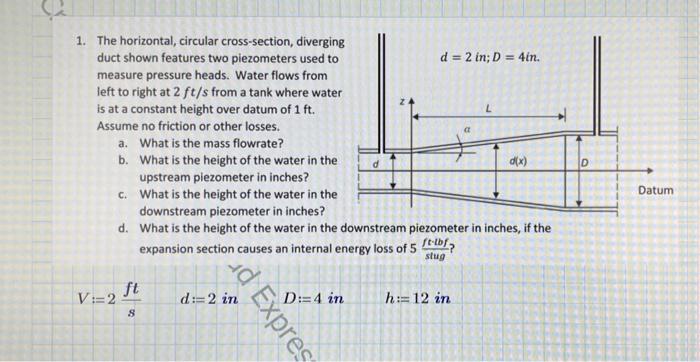

1. The horizontal, circular cross-section, diverging duct shown features two piezometers used to measure pressure heads.

[answerhappygod]

1 The Horizontal Circular Cross Section Diverging Duct Shown Features Two Piezometers Used To Measure Pressure Heads 1 (44.41 KiB) Viewed 21 times

1. The horizontal, circular cross-section, diverging duct shown features two piezometers used to measure pressure heads. Water flows from left to right at 2 ft/s from a tank where water is at a constant height over datum of 1 ft. Assume no friction or other losses. a. What is the mass flowrate? b. V:=2 What is the height of the water in the upstream piezometer in inches? c. What is the height of the water in the downstream piezometer in inches? d. What is the height of the water in the downstream piezometer in inches, if the expansion section causes an internal energy loss of 5 ? stug ft 8 d Expres d:= 2 in d = 2 in; D = 4in. D:=4 in h:= 12 in d(x) Datum
