(b) A pump draws water at 30 °C from an open tank as shown in Figure 2. The pump is located above the tank and the syste
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
(b) A pump draws water at 30 °C from an open tank as shown in Figure 2. The pump is located above the tank and the syste

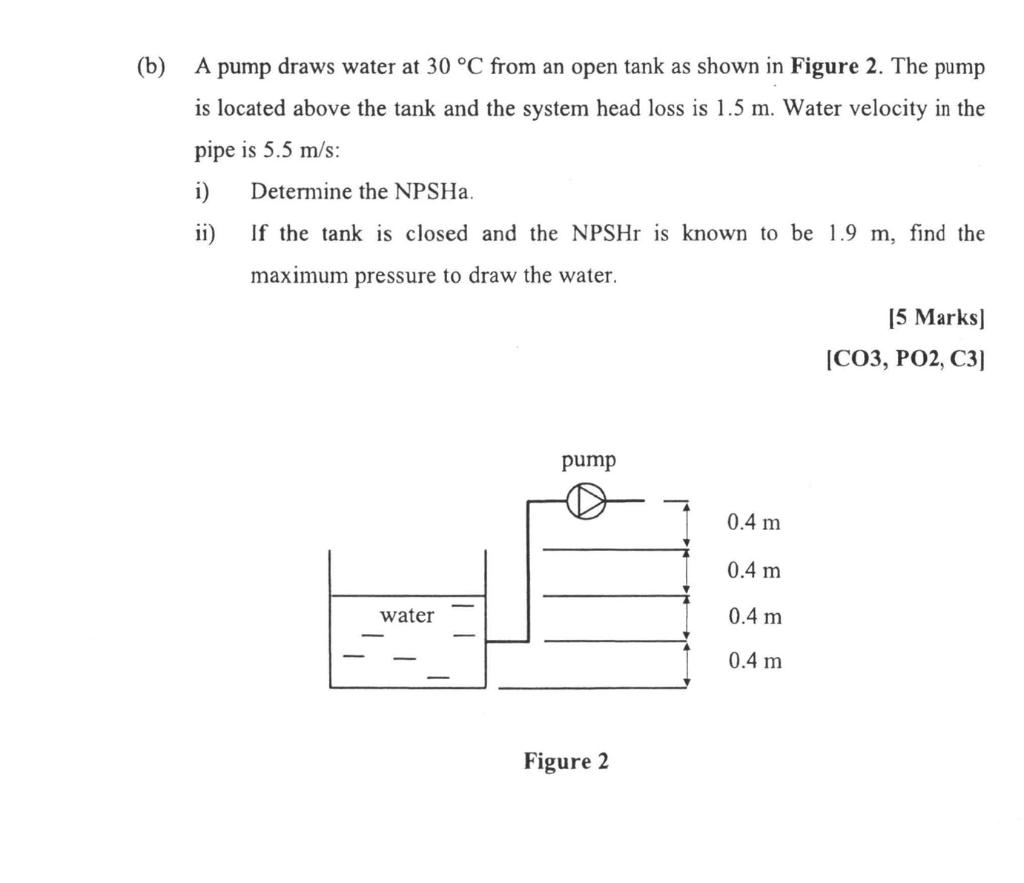

(b) A pump draws water at 30 °C from an open tank as shown in Figure 2. The pump is located above the tank and the system head loss is 1.5 m. Water velocity in the pipe is 5.5 m/s: i) ii) Determine the NPSHa. If the tank is closed and the NPSHr is known to be 1.9 m, find the maximum pressure to draw the water. - water - pump Figure 2 0.4 m 0.4 m 0.4 m 0.4 m [5 Marks] [CO3, PO2, C3]
