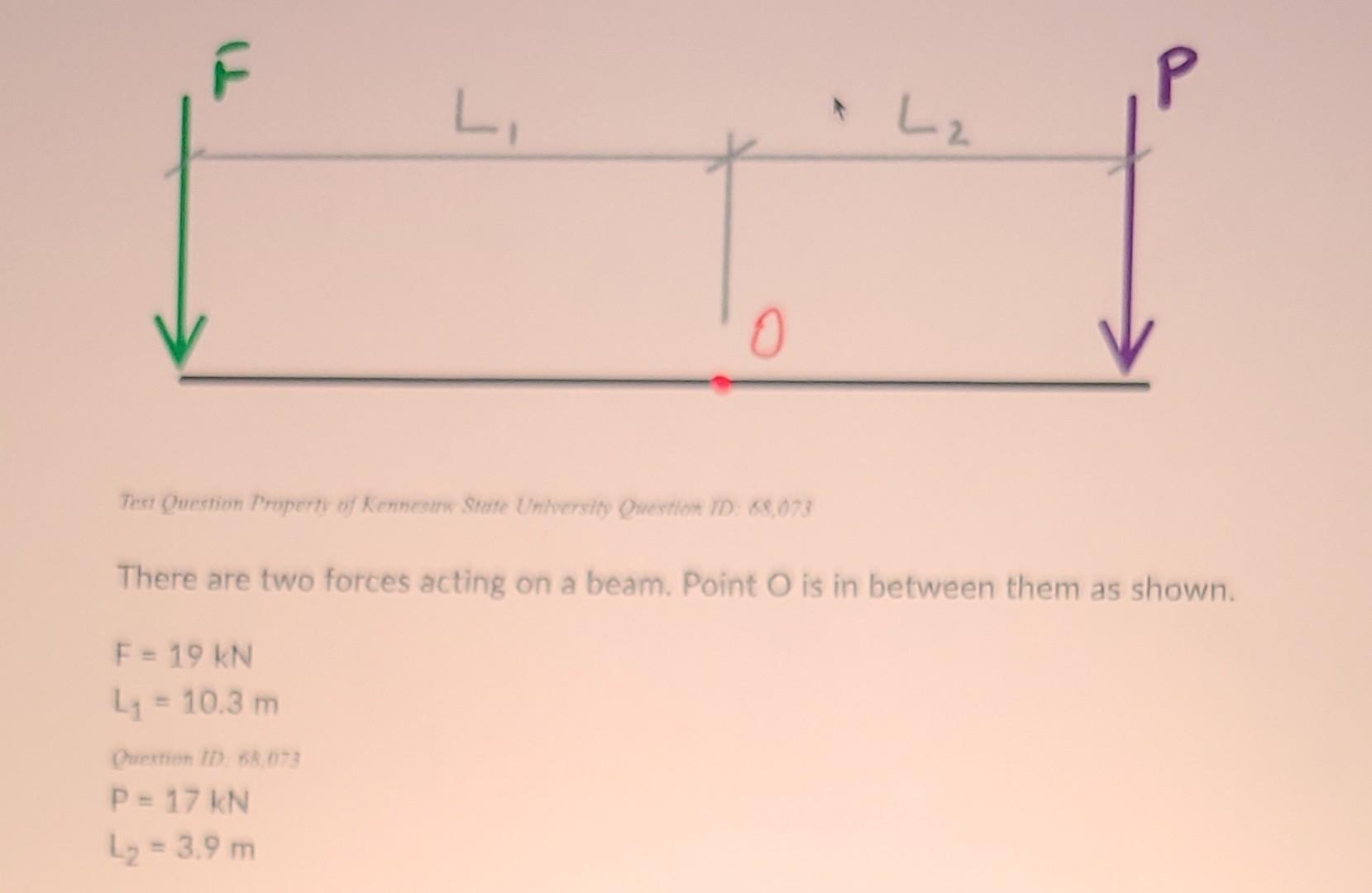

L₁ Test Question Property of Kennesaw State University Question ID: 68,073 F = 19 KN L₁ = 10.3 m 0 Question ID: 68,073 P = 17 KN L₂ = 3.9 m There are two forces acting on a beam. Point O is in between them as shown. * L₂

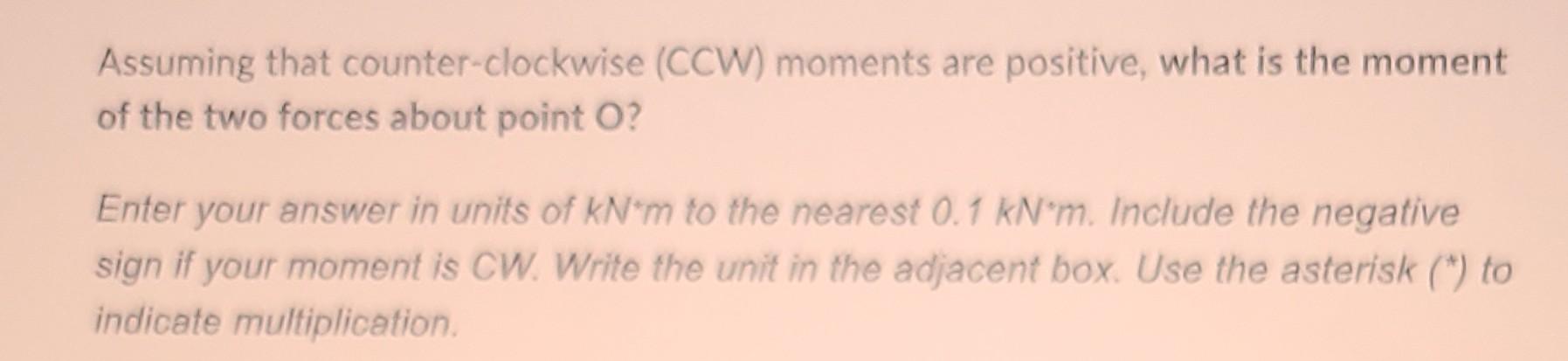

Assuming that counter-clockwise (CCW) moments are positive, what is the moment. of the two forces about point O? Enter your answer in units of kNm to the nearest 0.1 kNm. Include the negative sign if your moment is CW. Write the unit in the adjacent box. Use the asterisk (*) to indicate multiplication.
