5. [-/7 Points] An element in plane stress is subjected to stresses x = 5,730 psi, o = 1,140 psi, and Txy = 710 psi (see

[answerhappygod]

5 7 Points An Element In Plane Stress Is Subjected To Stresses X 5 730 Psi O 1 140 Psi And Txy 710 Psi See 1 (108.22 KiB) Viewed 39 times

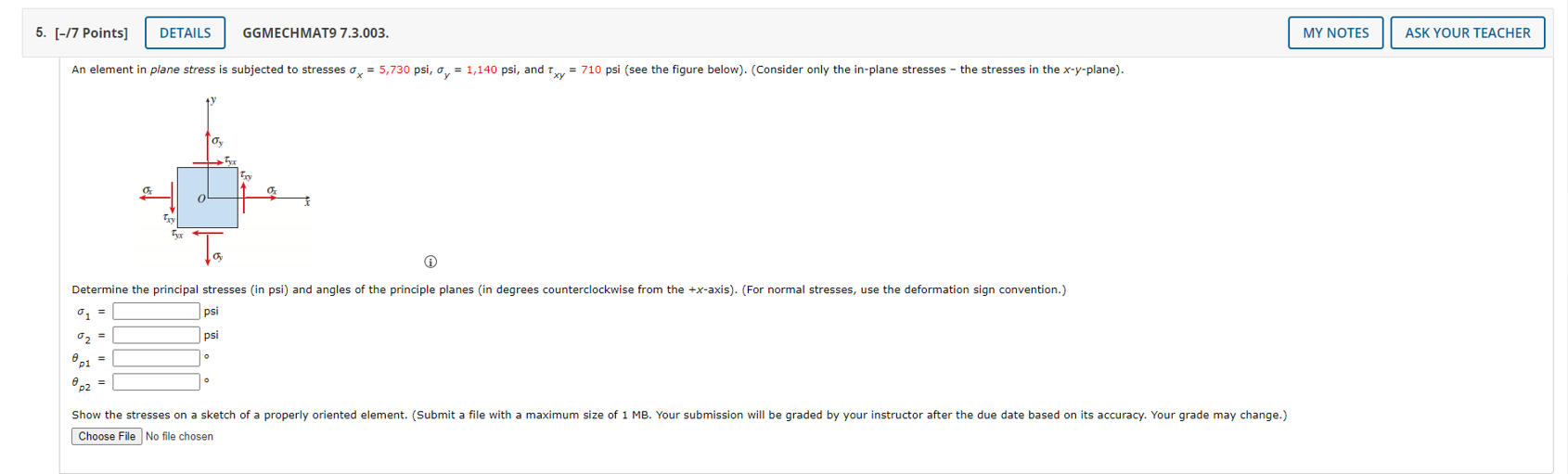

5. [-/7 Points] An element in plane stress is subjected to stresses x = 5,730 psi, o = 1,140 psi, and Txy = 710 psi (see the figure below). (Consider only the in-plane stresses the stresses in the x-y-plane). DETAILS ox p2 = GGMECHMAT9 7.3.003. T₁₂ Determine the principal stresses (in psi) and angles of the principle planes (in degrees counterclockwise from the +x-axis). (For normal stresses, use the deformation sign convention.) %1 = psi psi %₂ = Show the stresses on a sketch of a properly oriented element. (Submit a file with a maximum size of 1 MB. Your submission will be graded by your instructor after the due date based on its accuracy. Your grade may change.) Choose File No file chosen MY NOTES ASK YOUR TEACHER
