A tubular post of outer diameter dy is guyed by two cables fitted with tumbuckles (see figure) 60 Cable Post Turnbuckle

Post by answerhappygod »

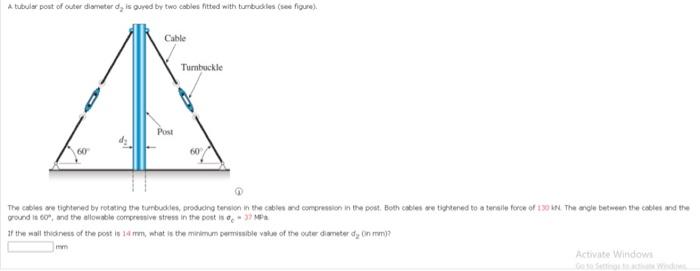

A Tubular Post Of Outer Diameter Dy Is Guyed By Two Cables Fitted With Tumbuckles See Figure 60 Cable Post Turnbuckle 1
A Tubular Post Of Outer Diameter Dy Is Guyed By Two Cables Fitted With Tumbuckles See Figure 60 Cable Post Turnbuckle 1 (14.46 KiB) Viewed 27 times
A tubular post of outer diameter dy is guyed by two cables fitted with tumbuckles (see figure) 60 Cable Post Turnbuckle The cables are tightened by rotating the tumbudiles, producing tension in the cables and compression in the post. Both cables are tightened to a tensile force of 130 AN. The angle between the cables and the ground is 60", and the allowable compressive stress in the post is 37 MPa If the wall thickness of the post is 14 mm, what is the minimum permissible value of the outer diameter dy On mm)? mm Activate Windows
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
