A tie-down on the deck of a sailboat consists of a bent bar bolted at both ends, as shown in the figure -dw- The diamete

[answerhappygod]

A Tie Down On The Deck Of A Sailboat Consists Of A Bent Bar Bolted At Both Ends As Shown In The Figure Dw The Diamete 1 (10.95 KiB) Viewed 51 times

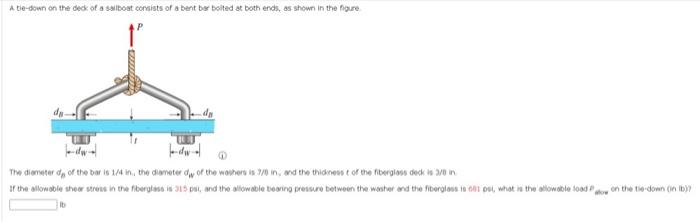

A tie-down on the deck of a sailboat consists of a bent bar bolted at both ends, as shown in the figure -dw- The diameter de of the bar is 1/4 in, the diameter dw of the washers is 7/0 in, and the thickness of the fiberglass deck is 3/8 in If the allowable shear stress in the fiberglass is 315 psl, and the allowable bearing pressure between the washer and the fiberglass is 001 pst, what is the allowable load Pow on the tie-down (in lb)? lb
