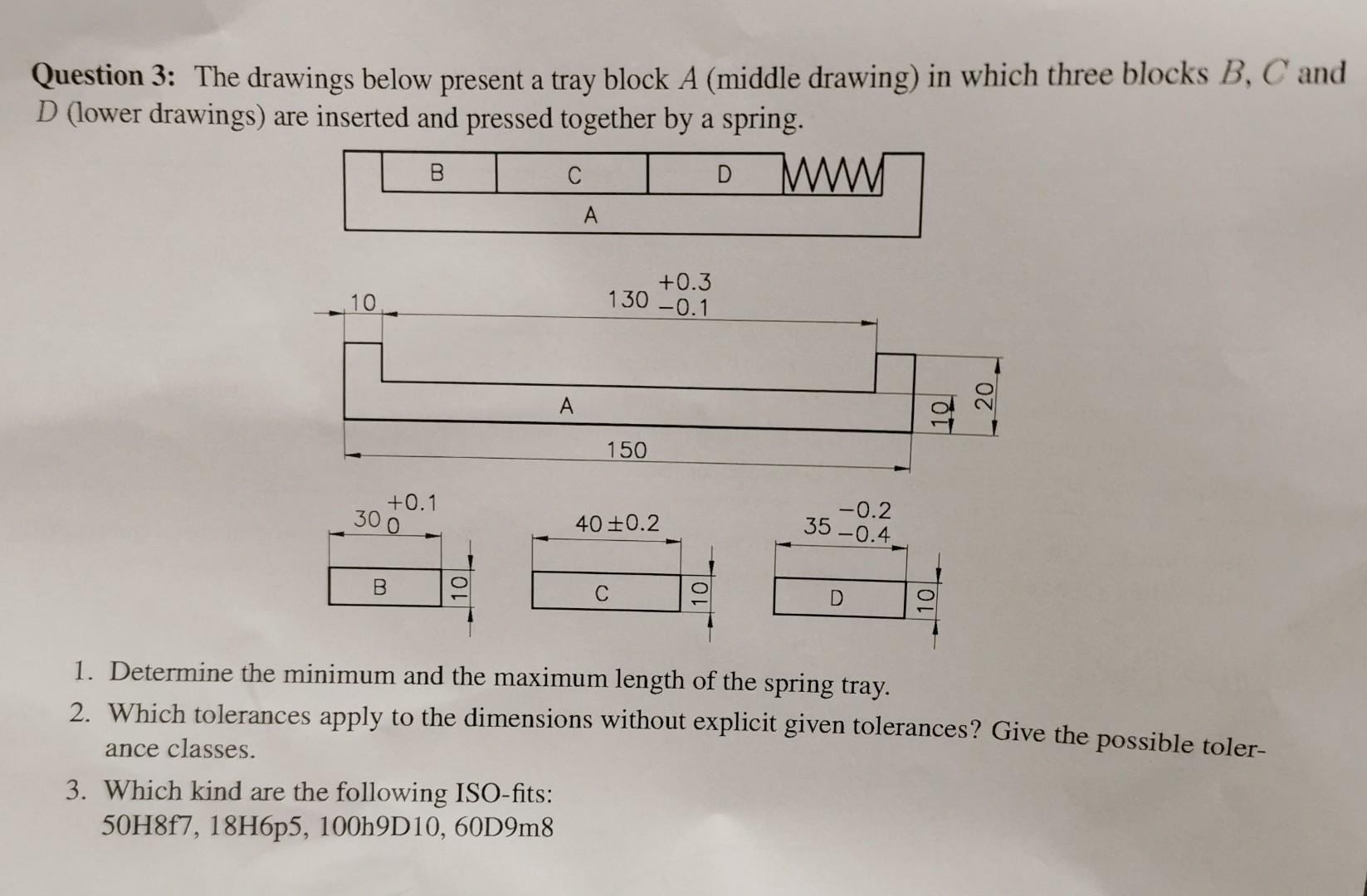

Question 3 The Drawings Below Present A Tray Block A Middle Drawing In Which Three Blocks B C And D Lower Drawings 1 (119.78 KiB) Viewed 34 times
【Mechanical design】Please write the process in detailed, definitely Thumbs up ! Question 3: The drawings below present a tray block A (middle drawing) in which three blocks B, C and D (lower drawings) are inserted and pressed together by a spring. B D WWW 10 +0.1 300 B C 3. Which kind are the following ISO-fits: 50H8f7, 18H6p5, 100h9D10, 60D9m8 A A +0.3 130 -0.1 150 40 ±0.2 C -0.2 35 -0.4, D 10 20 1. Determine the minimum and the maximum length of the spring tray. 2. Which tolerances apply to the dimensions without explicit given tolerances? Give the possible toler- ance classes.
