For the beam and loading shown, determine (a) the reaction at point A, (b) the deflection at point B. Use E = 200 GPa an

Post by answerhappygod »

For The Beam And Loading Shown Determine A The Reaction At Point A B The Deflection At Point B Use E 200 Gpa An 1
For The Beam And Loading Shown Determine A The Reaction At Point A B The Deflection At Point B Use E 200 Gpa An 1 (15.31 KiB) Viewed 20 times
Please neat hand writing
EXPLAIN USING DOUBLE INTEGRATION METHOD AND MACAULEYS

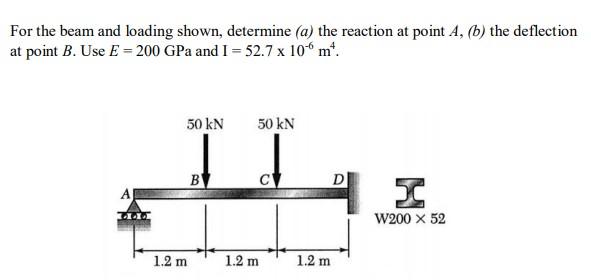

For the beam and loading shown, determine (a) the reaction at point A, (b) the deflection at point B. Use E = 200 GPa and I = 52.7 x 10 m². A LL 50 kN 1.2 m B 50 kN 1.2 m 1.2 m D W200 X 52
