The figure belows shows three components of an air-conditioning system, where T3 = 95°F and m3 = 1.5 lb/s. Refrigerant 1

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The figure belows shows three components of an air-conditioning system, where T3 = 95°F and m3 = 1.5 lb/s. Refrigerant 1

Post by answerhappygod »

The Figure Belows Shows Three Components Of An Air Conditioning System Where T3 95 F And M3 1 5 Lb S Refrigerant 1 1
The Figure Belows Shows Three Components Of An Air Conditioning System Where T3 95 F And M3 1 5 Lb S Refrigerant 1 1 (42.08 KiB) Viewed 64 times

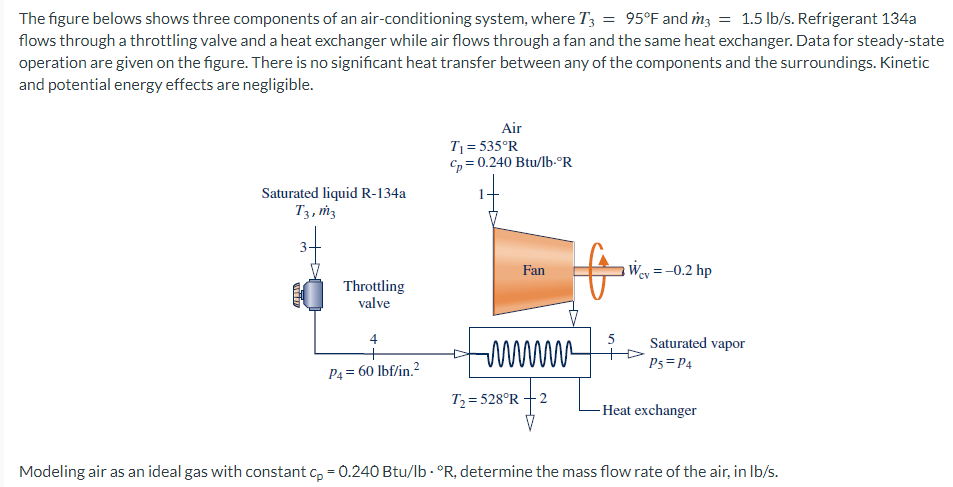

The figure belows shows three components of an air-conditioning system, where T3 = 95°F and m3 = 1.5 lb/s. Refrigerant 134a flows through a throttling valve and a heat exchanger while air flows through a fan and the same heat exchanger. Data for steady-state operation are given on the figure. There is no significant heat transfer between any of the components and the surroundings. Kinetic and potential energy effects are negligible. Saturated liquid R-134a T3, m3 Throttling valve 4 + P4 = 60 lbf/in.² Air T₁ = 535°R Cp = 0.240 Btu/lb.°R Fan Hik T₂=528°R +2 5 Wey = -0.2 hp www. Saturated vapor P5 = P4 -Heat exchanger Modeling air as an ideal gas with constant cp = 0.240 Btu/lb. "R, determine the mass flow rate of the air, in lb/s.
