Part 1: 1. A gantry structure requires structural integrity investigations, the forces acting on the structure are prese

[answerhappygod]

Part 1 1 A Gantry Structure Requires Structural Integrity Investigations The Forces Acting On The Structure Are Prese 1 (32.49 KiB) Viewed 27 times

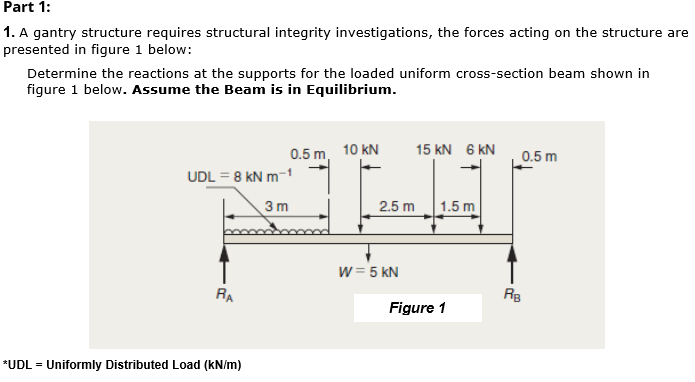

Part 1: 1. A gantry structure requires structural integrity investigations, the forces acting on the structure are presented in figure 1 below: Determine the reactions at the supports for the loaded uniform cross-section beam shown in figure 1 below. Assume the Beam is in Equilibrium. UDL=8 kN m-¹ 3m RA 0.5 m. 10 kN *UDL = Uniformly Distributed Load (kN/m) 2.5 m W = 5 KN 15 KN 6 KN 0.5 m 1.5 m Figure 1 RB
