(Refrigeration and heat pump system) For an ideal vapor-compression refrigeration cycle as shown in figure below. Satura

Post by answerhappygod »

Refrigeration And Heat Pump System For An Ideal Vapor Compression Refrigeration Cycle As Shown In Figure Below Satura 1
Refrigeration And Heat Pump System For An Ideal Vapor Compression Refrigeration Cycle As Shown In Figure Below Satura 1 (66.16 KiB) Viewed 45 times

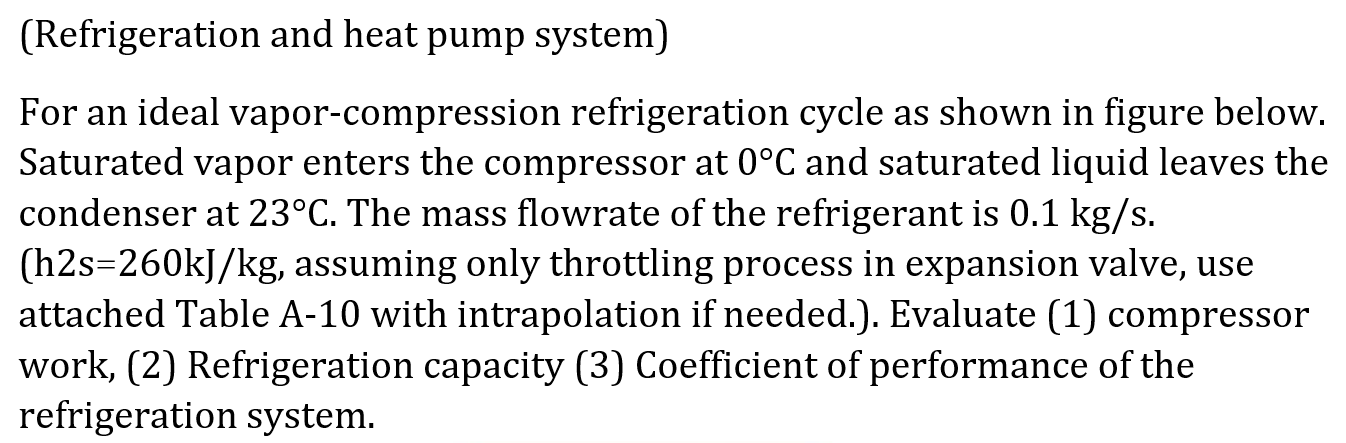

(Refrigeration and heat pump system) For an ideal vapor-compression refrigeration cycle as shown in figure below. Saturated vapor enters the compressor at 0°C and saturated liquid leaves the condenser at 23°C. The mass flowrate of the refrigerant is 0.1 kg/s. (h2s=260kJ/kg, assuming only throttling process in expansion valve, use attached Table A-10 with intrapolation if needed.). Evaluate (1) compressor work, (2) Refrigeration capacity (3) Coefficient of performance of the refrigeration system.
X 4 Warm region TH=23°C = 296 K Expansion valve Condenser Compressor Evaporator Qin Cold region Te=0°C=273 K
