a) A single degree of freedom system with viscous damper is shown in Figure 3. The system driven by external forces, F=

Post by answerhappygod »

A A Single Degree Of Freedom System With Viscous Damper Is Shown In Figure 3 The System Driven By External Forces F 1
A A Single Degree Of Freedom System With Viscous Damper Is Shown In Figure 3 The System Driven By External Forces F 1 (85.94 KiB) Viewed 62 times

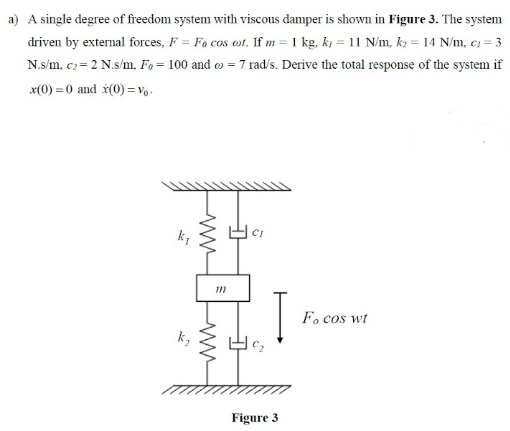

a) A single degree of freedom system with viscous damper is shown in Figure 3. The system driven by external forces, F= Fo cos cot. If m= 1 kg, k, = 11 N/m, k₂ = 14 N/m, c₁ = 3 N.s/m, c₂= 2 N.s/m, Fo= 100 and 7 rad/s. Derive the total response of the system if x(0) = 0 and x(0) = Vo. (0 = k₁ k₂ ww 171 Į Figure 3 Fo cos wt
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
