R₁ VIN-W R3 0 0= C C R₂ VOUT 1. Determine an expression for the circuit output (Vout) in terms of the components and the

Post by answerhappygod »

R Vin W R3 0 0 C C R Vout 1 Determine An Expression For The Circuit Output Vout In Terms Of The Components And The 1
R Vin W R3 0 0 C C R Vout 1 Determine An Expression For The Circuit Output Vout In Terms Of The Components And The 1 (387.99 KiB) Viewed 16 times

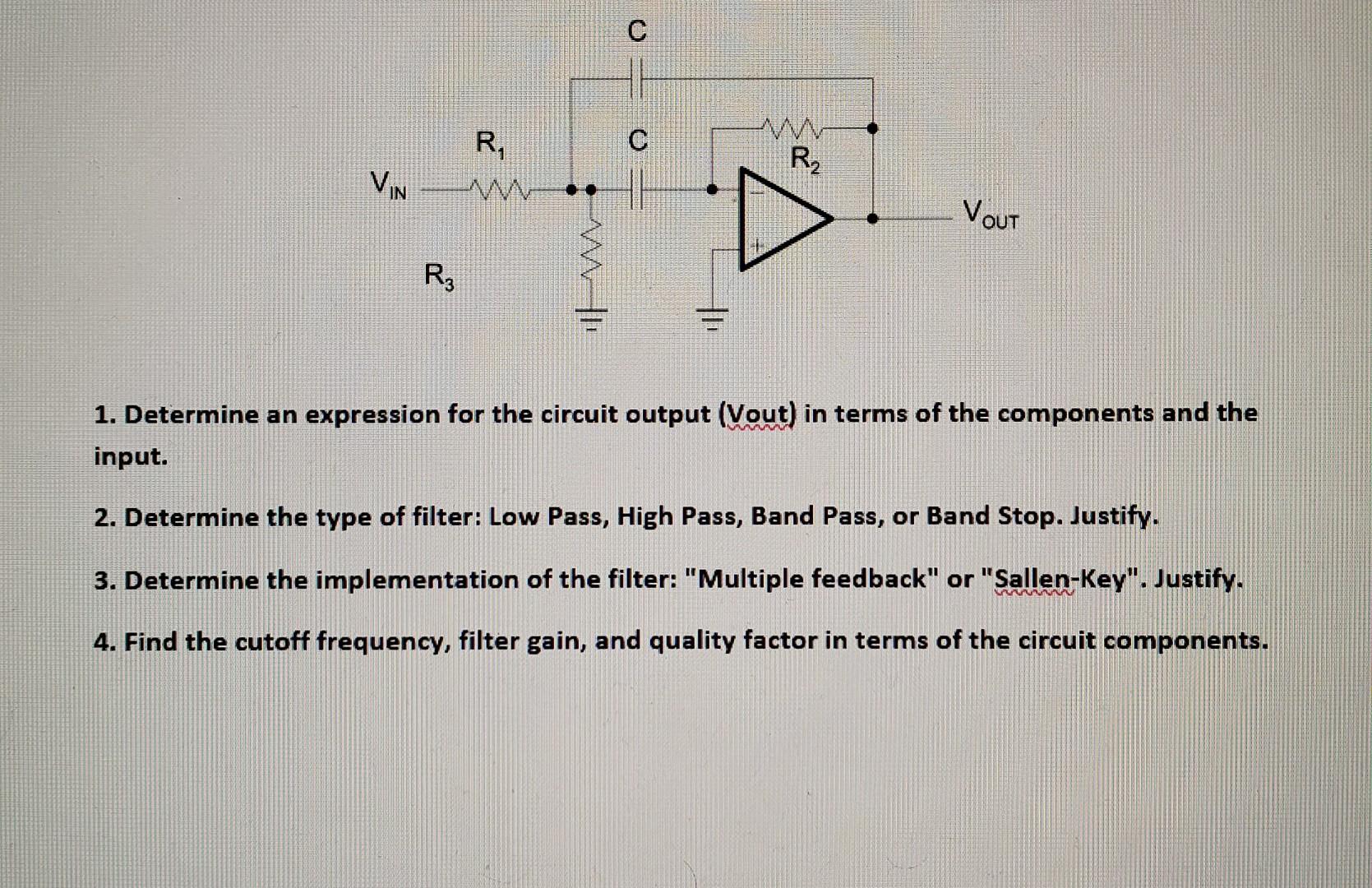

R₁ VIN-W R3 0 0= C C R₂ VOUT 1. Determine an expression for the circuit output (Vout) in terms of the components and the input. 2. Determine the type of filter: Low Pass, High Pass, Band Pass, or Band Stop. Justify. 3. Determine the implementation of the filter: "Multiple feedback" or "Sallen-Key". Justify. 4. Find the cutoff frequency, filter gain, and quality factor in terms of the circuit components.
