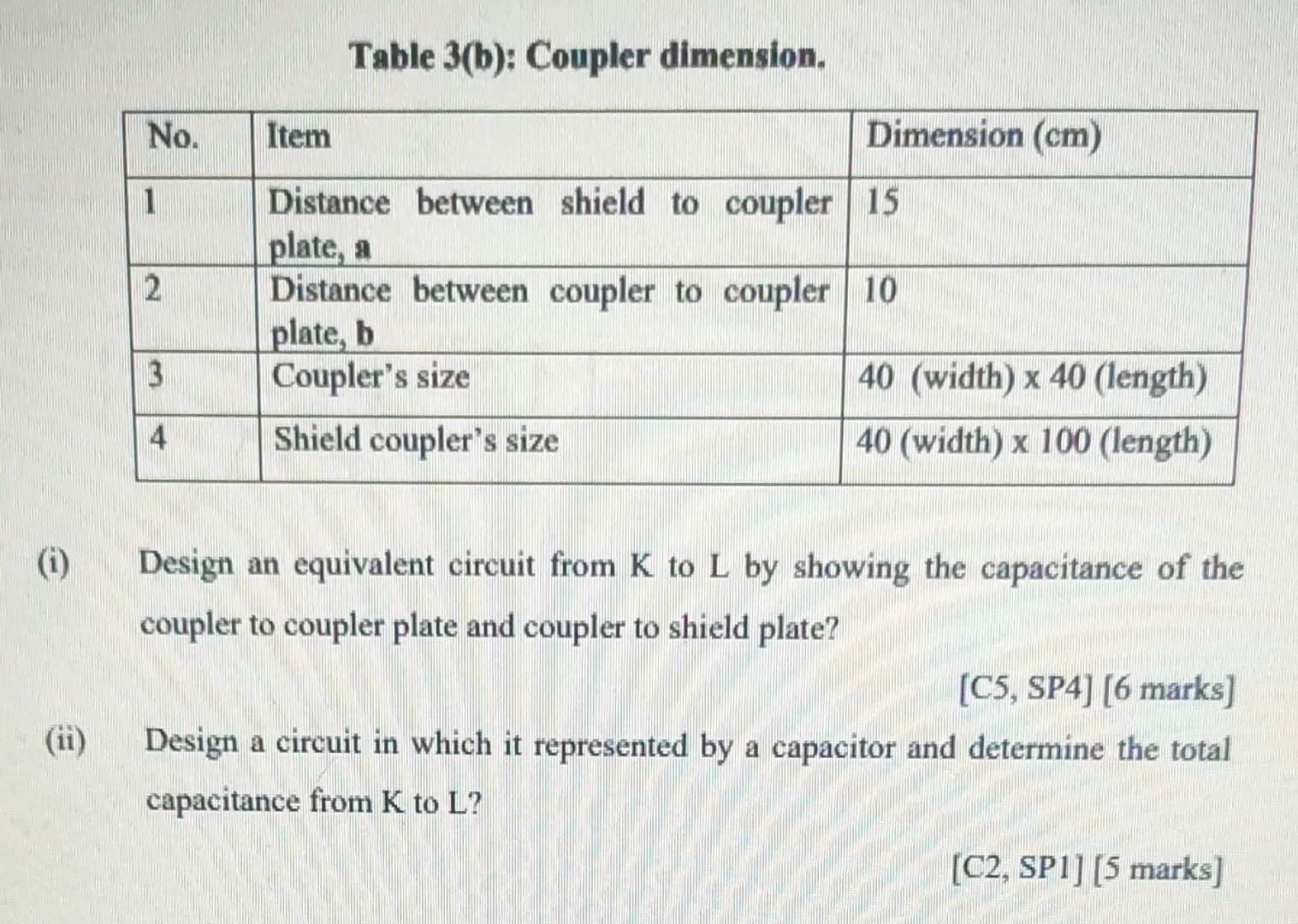

No. € 3 4 Table 3(b): Coupler dimension. Dimension (cm) Item Distance between shield to coupler 15 plate, a Distance between coupler to coupler 10 plate, b Coupler's size Shield coupler's size 40 (width) x 40 (length) 40 (width) x 100 (length) (i) Design an equivalent circuit from K to L by showing the capacitance of the coupler to coupler plate and coupler to shield plate? [C5, SP4] [6 marks] Design a circuit in which it represented by a capacitor and determine the total capacitance from K to L? [C2, SP1] [5 marks]
