QUESTION 2 [20 MARKS] (a) In your own words, explain why digital system is less affected by noise? [2 marks] (b) Determi

[answerhappygod]

Question 2 20 Marks A In Your Own Words Explain Why Digital System Is Less Affected By Noise 2 Marks B Determi 1 (65.87 KiB) Viewed 28 times

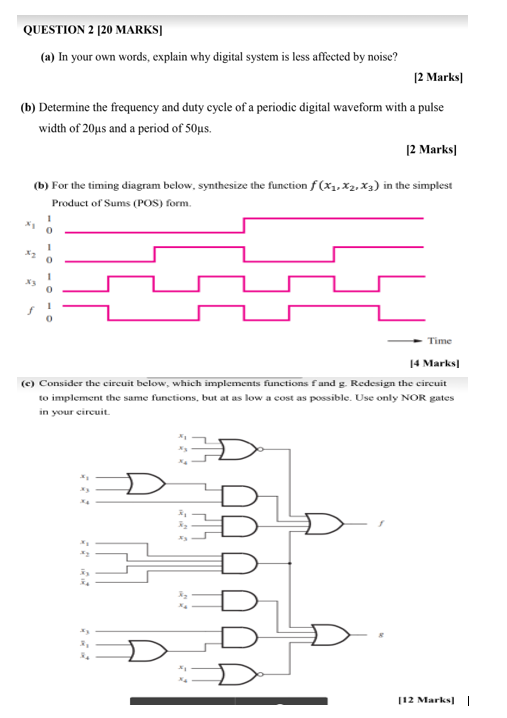

QUESTION 2 [20 MARKS] (a) In your own words, explain why digital system is less affected by noise? [2 marks] (b) Determine the frequency and duty cycle of a periodic digital waveform with a pulse width of 20μs and a period of 50μs. [2 marks] (b) For the timing diagram below, synthesize the function f(x₁, x₂, X3) in the simplest Product of Sums (POS) form. F 3₂ 33 1 0 1 0 0 1 Time 14 Marks] (c) Consider the circuit below, which implements functions fand g. Redesign the circuit to implement the same functions, but at as low a cost as possible. Use only NOR gates in your circuit. x₁ 3₂ B [12 Marks] |
