(b) An electron gun is composed of hollowed anode and cathode discs. These discs are used to accelerate electron when a

[answerhappygod]

B An Electron Gun Is Composed Of Hollowed Anode And Cathode Discs These Discs Are Used To Accelerate Electron When A 1 (177.03 KiB) Viewed 25 times

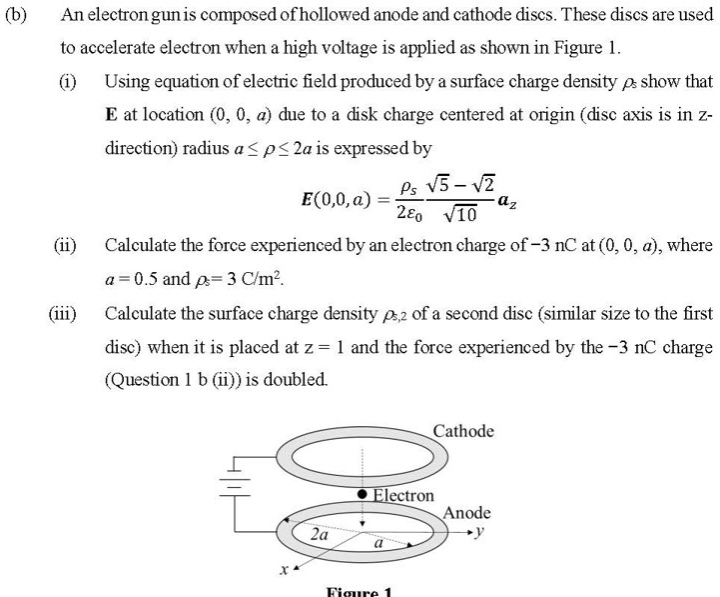

(b) An electron gun is composed of hollowed anode and cathode discs. These discs are used to accelerate electron when a high voltage is applied as shown in Figure 1. (1) Using equation of electric field produced by a surface charge density ps show that E at location (0, 0, a) due to a disk charge centered at origin (disc axis is in z- direction) radius a ≤p<2a is expressed by (iii) Ps √5-√2 Ζεο ντο Calculate the force experienced by an electron charge of -3 nC at (0, 0, a), where a=0.5 and p= 3 C/m². Calculate the surface charge density ps,2 of a second disc (similar size to the first disc) when it is placed at z = 1 and the force experienced by the -3 nC charge (Question 1 b (ii)) is doubled. 푸 X E(0,0, a) = 2a Electron a Cathode Figure Anode y az
