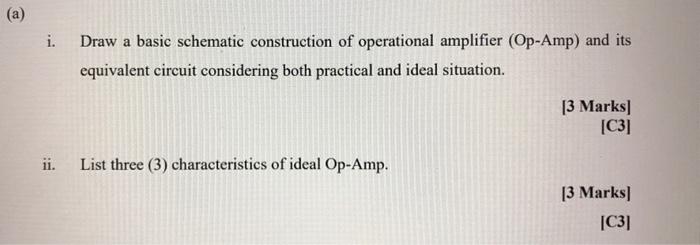

(a) i. ii. Draw a basic schematic construction of operational amplifier (Op-Amp) and its equivalent circuit considering both practical and ideal situation. List three (3) characteristics of ideal Op-Amp. [3 marks] [C3] [3 marks] [C3]

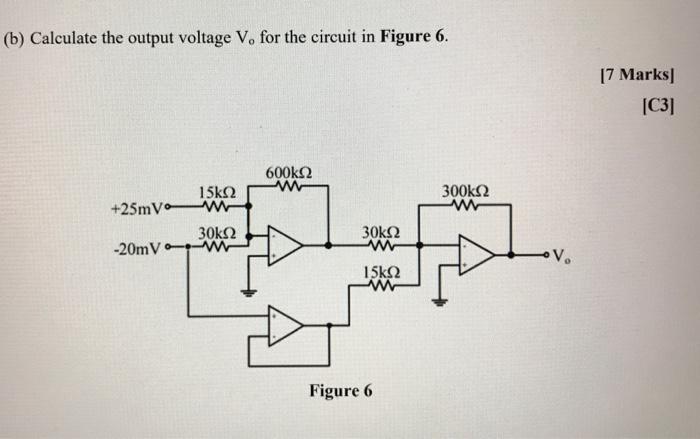

(b) Calculate the output voltage Vo for the circuit in Figure 6. 15kΩ +25mV• W -20mV ' 30ΚΩ 600ΚΩ M 30ΚΩ www 15kΩ Μ Figure 6 300ΚΩ www •Vo [7 Marks] [C3]
