- Build The Circuit Of Fig 3 Set The Function Generator To Generate A 1500 Hz Sine Wave With A Peak To Peak Voltage Of 1 (70.2 KiB) Viewed 26 times
Build the circuit of Fig. 3. Set the function generator to generate a 1500 Hz sine wave with a peak- to-peak voltage of
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
Build the circuit of Fig. 3. Set the function generator to generate a 1500 Hz sine wave with a peak- to-peak voltage of

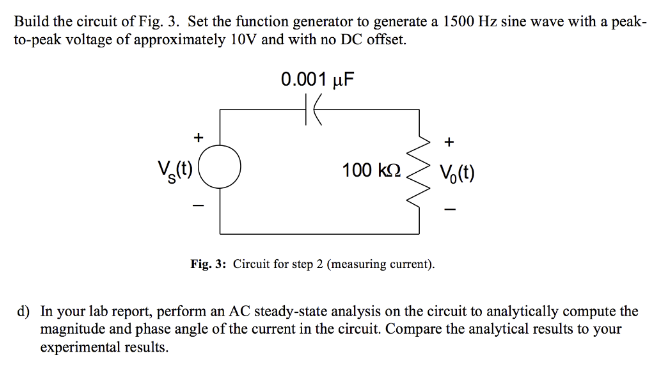

Build the circuit of Fig. 3. Set the function generator to generate a 1500 Hz sine wave with a peak- to-peak voltage of approximately 10V and with no DC offset. 0.001 μF + Vs(t) 100 ΚΩ Fig. 3: Circuit for step 2 (measuring current). + Vo(t) d) In your lab report, perform an AC steady-state analysis on the circuit to analytically compute the magnitude and phase angle of the current in the circuit. Compare the analytical results to your experimental results.
