2000 lb 10' 100 lb/ft The cantilever beam shown is built into a wall 4 ft. thick so that it rest against points A and B.
-
answerhappygod
- Site Admin
- Posts: 899603
- Joined: Mon Aug 02, 2021 8:13 am
2000 lb 10' 100 lb/ft The cantilever beam shown is built into a wall 4 ft. thick so that it rest against points A and B.

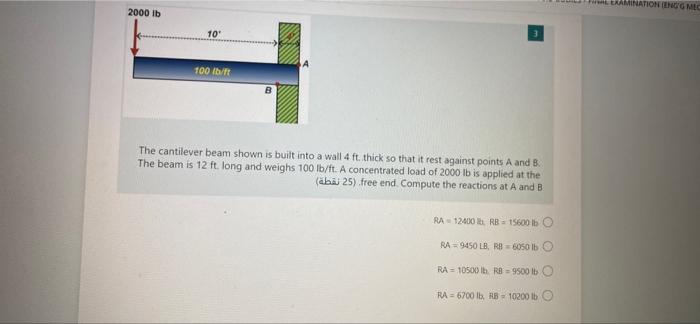

2000 lb 10' 100 lb/ft The cantilever beam shown is built into a wall 4 ft. thick so that it rest against points A and B. The beam is 12 ft. long and weighs 100 lb/ft. A concentrated load of 2000 lb is applied at the (abai 25) free end. Compute the reactions at A and B RA 12400 RB-15600 lb O RA 9450 LB, RB-6050 lb. RA 10500 lb. RB-9500 lb RA=6700 lb, RB - 10200 lb L EXAMINATION (ENG'G MEC
