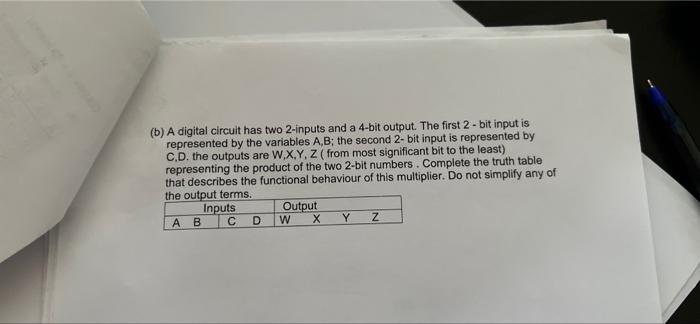

(b) A digital circuit has two 2-inputs and a 4-bit output. The first 2-bit input is represented by the variables A,B; the second 2-bit input is represented by C.D. the outputs are W,X,Y, Z ( from most significant bit to the least) representing the product of the two 2-bit numbers. Complete the truth table that describes the functional behaviour of this multiplier. Do not simplify any of the output terms. Inputs AB CD Output W X Y Z
