The following circuit is a 2nd Order Filter implemented with a GIC. a) Determine the type of filter. b) Calculate, Ho, o

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

The following circuit is a 2nd Order Filter implemented with a GIC. a) Determine the type of filter. b) Calculate, Ho, o

Post by answerhappygod »

The Following Circuit Is A 2nd Order Filter Implemented With A Gic A Determine The Type Of Filter B Calculate Ho O 1
The Following Circuit Is A 2nd Order Filter Implemented With A Gic A Determine The Type Of Filter B Calculate Ho O 1 (25.72 KiB) Viewed 38 times
DO NOT COPY FROM OTHER answers ANSWERS. I WILL GIVE BAD RATING ANDREPORT.

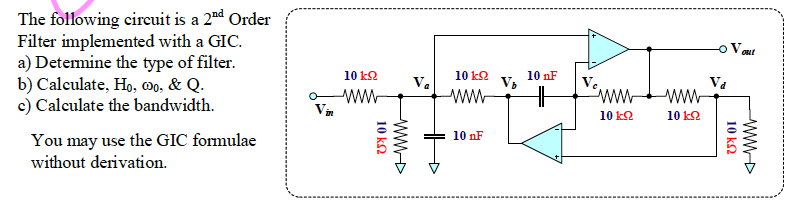

The following circuit is a 2nd Order Filter implemented with a GIC. a) Determine the type of filter. b) Calculate, Ho, o, & Q. c) Calculate the bandwidth. You may use the GIC formulae without derivation. 10 ΙΩ 10 nF V₂ Ve Ses www www www 10 ΙΩ 10 nF 10 ΚΩ Va 10 kQ Va Vout
