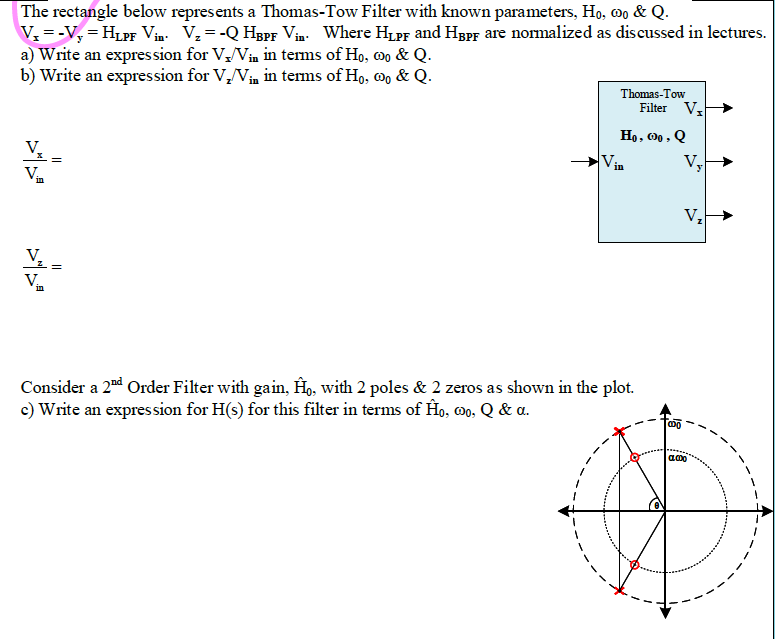

The rectangle below represents a Thomas-Tow Filter with known parameters, Ho, co & Q. V₁ = -V, = HLPF Vin. V₂ = -Q HBPF Vin. Where HLPF and HÅPF are normalized as discussed in lectures. a) Write an expression for V₁/Vin in terms of Ho, co & Q. b) Write an expression for V₂/Vin in terms of Ho, & Q. V₂ Vin V₂ Vin || Z= Thomas-Tow Ho,00, Q in Filter V₁ Consider a 2nd Order Filter with gain, Ho, with 2 poles & 2 zeros as shown in the plot. c) Write an expression for H(s) for this filter in terms of Ho, co, Q & a. ODO Vý $
