results should look like this for both tasks.
Solve Using Matlab Only Results Should Look Like This For Both Tasks 3 (32.7 KiB) Viewed 23 times

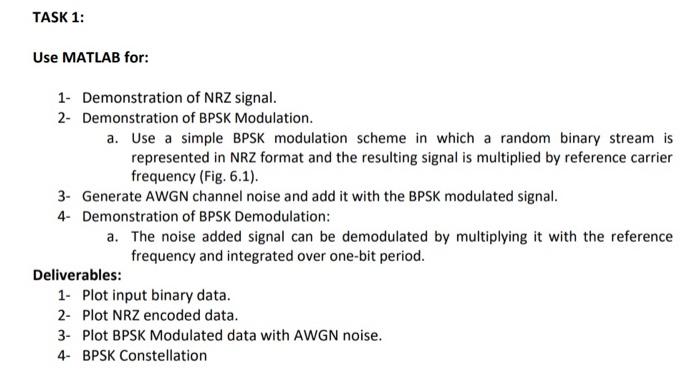

TASK 1: Use MATLAB for: 1- Demonstration of NRZ signal. 2- Demonstration of BPSK Modulation. a. Use a simple BPSK modulation scheme in which a random binary stream is represented in NRZ format and the resulting signal is multiplied by reference carrier frequency (Fig. 6.1). 3- Generate AWGN channel noise and add it with the BPSK modulated signal. 4- Demonstration of BPSK Demodulation: a. The noise added signal can be demodulated by multiplying it with the reference frequency and integrated over one-bit period. Deliverables: 1- Plot input binary data. 2- Plot NRZ encoded data. 3- Plot BPSK Modulated data with AWGN noise. 4- BPSK Constellation

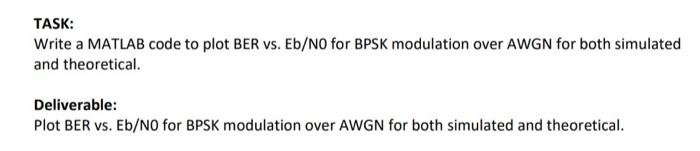

TASK: Write a MATLAB code to plot BER vs. Eb/NO for BPSK modulation over AWGN for both simulated and theoretical. Deliverable: Plot BER vs. Eb/NO for BPSK modulation over AWGN for both simulated and theoretical.
