can you please help me with this electrical question?
Can You Please Help Me With This Electrical Question 1 (33.82 KiB) Viewed 33 times
Can You Please Help Me With This Electrical Question 2 (35.93 KiB) Viewed 33 times

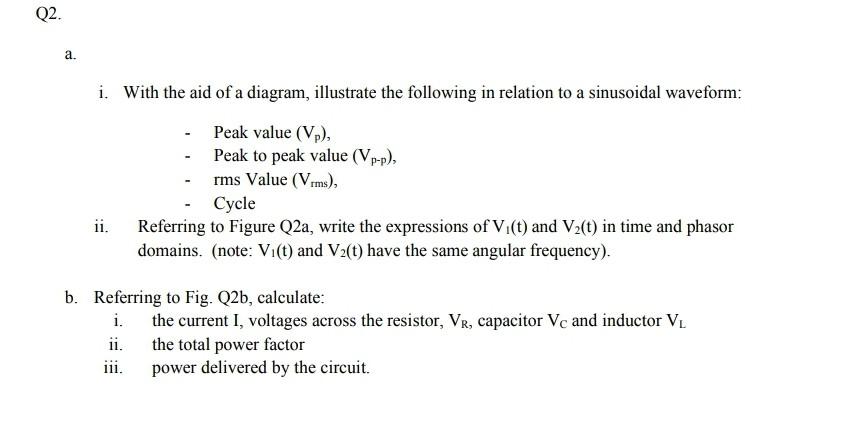

Q2. a. i. With the aid of a diagram, illustrate the following in relation to a sinusoidal waveform: Peak value (Vp), Peak to peak value (Vp-p), rms Value (Vrms), Cycle ii. Referring to Figure Q2a, write the expressions of V₁(t) and V₂(t) in time and phasor domains. (note: Vi(t) and V2(t) have the same angular frequency). b. Referring to Fig. Q2b, calculate: 11. iii. the current I, voltages across the resistor, VR, capacitor Vc and inductor V₁ the total power factor power delivered by the circuit.

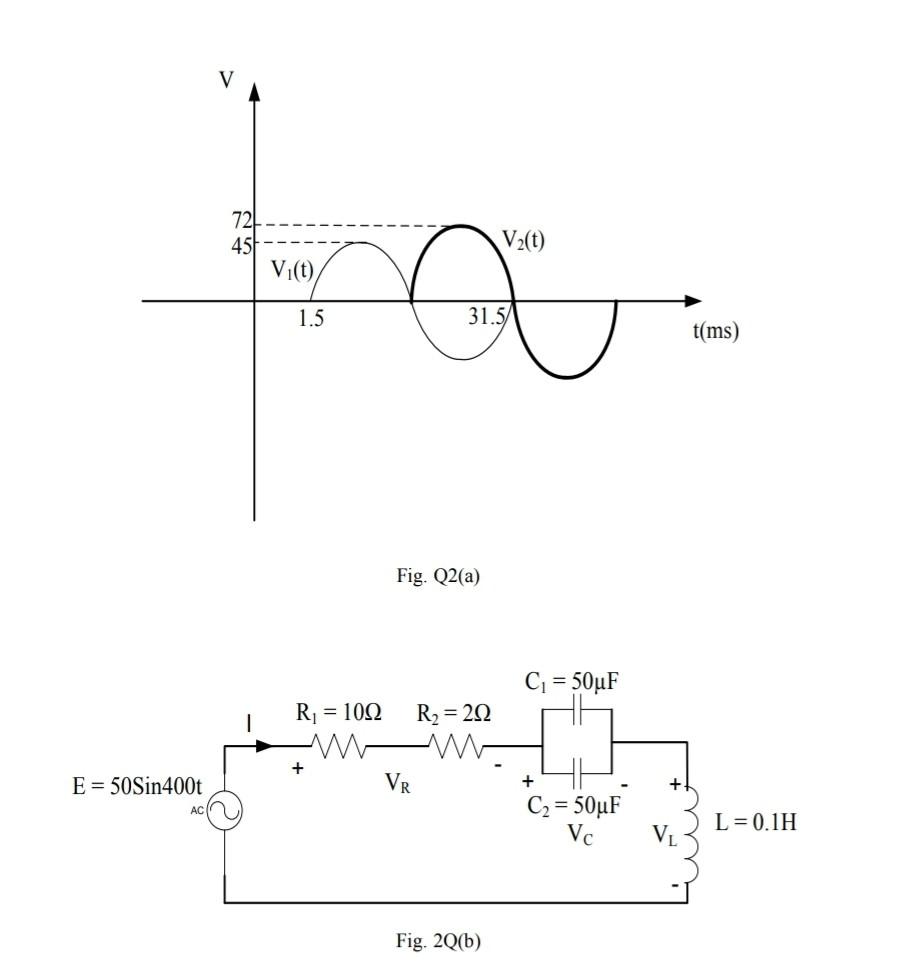

E = 50Sin400t AC V 72 45 V₁(t), 1.5 R₁ = 100 + Fig. Q2(a) VR 31.5/ R₂=292 V₂(t) Fig. 2Q(b) C₁ = 50μF - C₂ = 50μF Vc + t(ms) L = 0.1H
