QUESTION 2 What is the output function for the following circuit? Rf R₁ V1 V2 R₂ + O a. Vout = (-1/(jwRiC))*Vin b. Vout=

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899603
Joined: Mon Aug 02, 2021 8:13 am

QUESTION 2 What is the output function for the following circuit? Rf R₁ V1 V2 R₂ + O a. Vout = (-1/(jwRiC))*Vin b. Vout=

Post by answerhappygod »

Question 2 What Is The Output Function For The Following Circuit Rf R V1 V2 R O A Vout 1 Jwric Vin B Vout 1
Question 2 What Is The Output Function For The Following Circuit Rf R V1 V2 R O A Vout 1 Jwric Vin B Vout 1 (19.75 KiB) Viewed 14 times

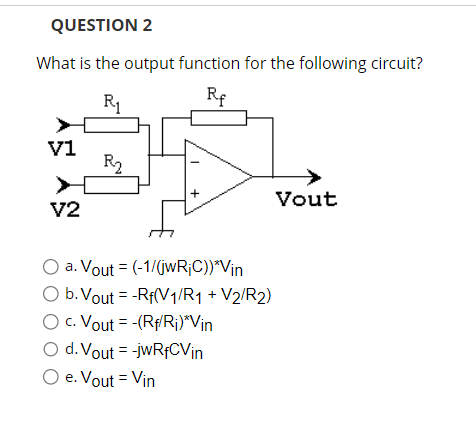

QUESTION 2 What is the output function for the following circuit? Rf R₁ V1 V2 R₂ + O a. Vout = (-1/(jwRiC))*Vin b. Vout= -Rf(V1/R1 + V2/R2) O c. Vout = -(Rf/R₁)*Vin O d. Vout = -jwRfCV in O e. Vout = Vin Vout
