Search 9:49 PM Wed Jun 29 2. (50 points) 7-segment display: a) Using Karnaugh maps with "don't cares", present simplifie

[answerhappygod]

Search 9 49 Pm Wed Jun 29 2 50 Points 7 Segment Display A Using Karnaugh Maps With Don T Cares Present Simplifie 1 (79.2 KiB) Viewed 25 times

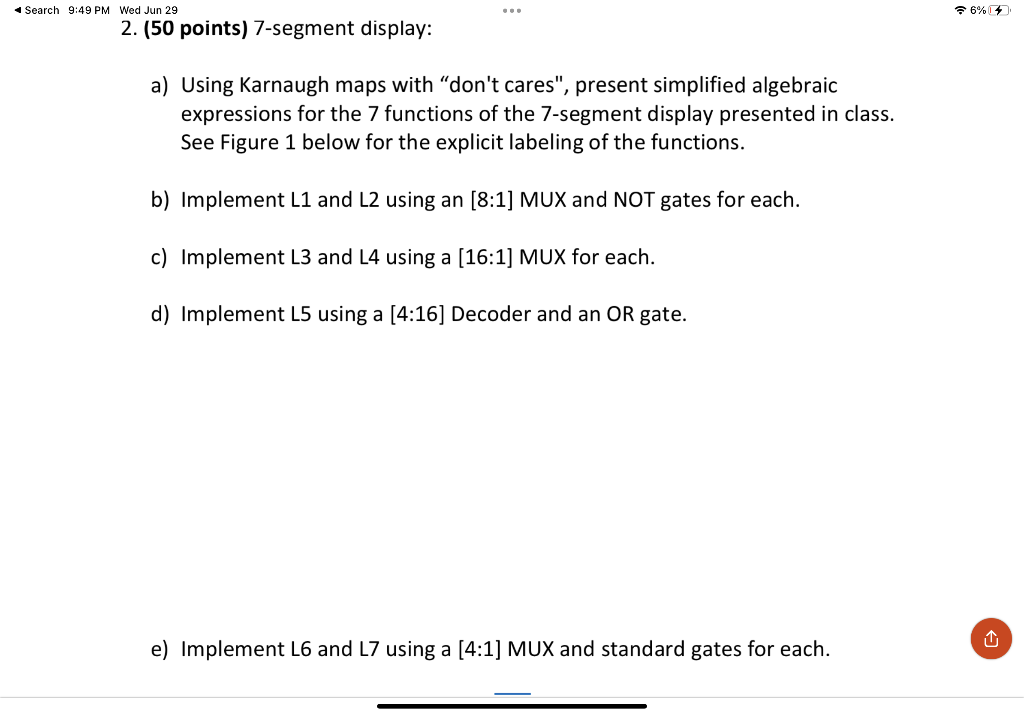

Search 9:49 PM Wed Jun 29 2. (50 points) 7-segment display: a) Using Karnaugh maps with "don't cares", present simplified algebraic expressions for the 7 functions of the 7-segment display presented in class. See Figure 1 below for the explicit labeling of the functions. b) Implement L1 and L2 using an [8:1] MUX and NOT gates for each. c) Implement L3 and L4 using a [16:1] MUX for each. d) Implement L5 using a [4:16] Decoder and an OR gate. e) Implement L6 and L7 using a [4:1] MUX and standard gates for each. 6%
