6. (5 pts) For the parallel DC circuit in Figure 2, determine the total resistance (RT) and the current I flowing in the

Post by answerhappygod »

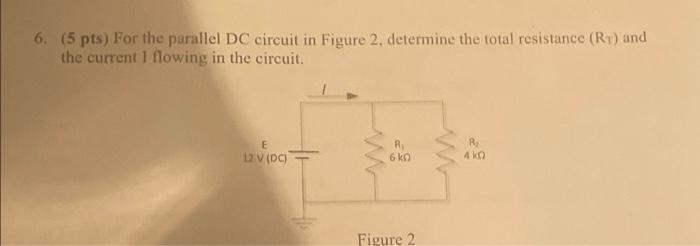

6 5 Pts For The Parallel Dc Circuit In Figure 2 Determine The Total Resistance Rt And The Current I Flowing In The 1
6 5 Pts For The Parallel Dc Circuit In Figure 2 Determine The Total Resistance Rt And The Current I Flowing In The 1 (10.91 KiB) Viewed 29 times
6. (5 pts) For the parallel DC circuit in Figure 2, determine the total resistance (RT) and the current I flowing in the circuit. E 12 V (DC) R₁ 6 k Figure 2 R₂ 4k0
